Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123996
Product Name

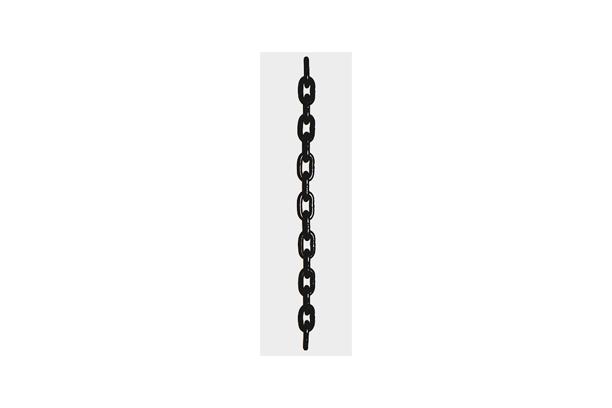

Hoist Chain - Grade T / Grade DAT
Model Name
-
Size
-
Weight
-
Product Details
| Hoist Chain - Grade T | ||||||
| ITEM | Chain Size D(mm) | Pitch P (mm) | Outside Width B(mm) | Weight (kg/m) | S.W.L (ton) | Breaking Load (ton) |
| HCT-6.3 | 6.3 | 19 | 7.9 | 0.86 | 1.27 | 5.1 |
| HCT-7.1 | 7.1 | 21 | 8.9 | 1.1 | 1.6 | 6.5 |
| HCT-7.9 | 7.9 | 23 | 9.8 | 1.38 | 2 | 8 |
| HCT-9.5 | 9.5 | 28.6 | 12 | 1.96 | 3.1 | 12.2 |
| HCT-11.1 | 11.1 | 33.3 | 14 | 2.69 | 3.9 | 15.8 |
| HCT-11.2 | 11.2 | 34 | 14 | 2.73 | 4 | 16.1 |
| HCT-12.5 | 12.5 | 38 | 15.6 | 3.4 | 5.1 | 20.4 |
| Hoist Chain - Grade DAT | ||||||
| ITEM | Chain Size D(mm) | Pitch P (mm) | Outside Width B(mm) | Weight (kg/m) | S.W.L (ton) | Breaking Load (ton) |
| HCT-6 | 6.3 | 19 | 7.9 | 0.86 | 1 | 5.1 |
| HCT-7.1 | 7.1 | 21 | 8.9 | 1.1 | 1.3 | 6.5 |
| HCT-7.9 | 7.9 | 23 | 9.8 | 1.38 | 1.6 | 8 |
| HCT-9.5 | 9.5 | 28.6 | 12 | 1.96 | 2.45 | 12.2 |
| HCT-11.1 | 11.1 | 33.3 | 14 | 2.69 | 3.16 | 15.8 |
| HCT-11.2 | 11.2 | 34 | 14 | 2.73 | 3.22 | 16.1 |
| HCT-12.5 | 12.5 | 38 | 15.6 | 3.4 | 4.08 | 20.4 |
