product Image

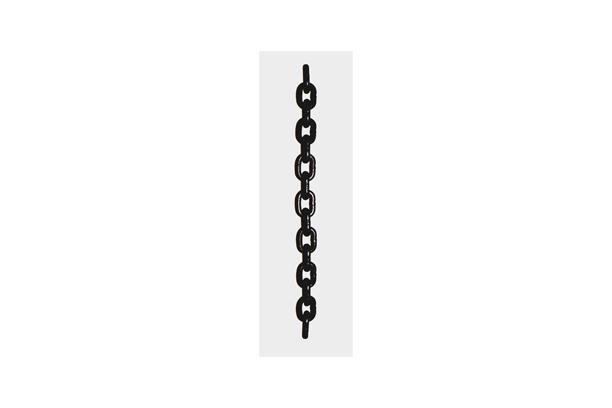

G80 Chain (Lifting, Load)
Model Name
-
Series
Chain
View All
Data
-
Manufacturer information
provider logo
IL SHIN MARINE SERVICE

Ship outfitting, Chain, etc.

Problem with product info?
Update request
Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123992
Product Name
G80 Chain (Lifting, Load)
Model Name
-
Size
-
Weight
-
Product Details

1.  Feature

- POSCO alloy Steel raw Material

- Welding Method : flash Butt Welding

- Heat Treatment Process : Quenching / Tempering

- Much better Tensile Strength and elasticity



2. Raw Material : Grade 80 Alloy Steel

POSCO alloy raw material composed of C, Si, Mm, P, V.



3. Specification

ITEMDiameter(mm)Pitch P (mm)Inside WidthWeight/mBreaking Load (KN)
G8R-66188.50.8445.2
G8R-772110.01.1461.6
G8R-882411.01.4180.6
G8R-10103014.02.25126
G8R-13133918.03.76214
G8R-16164822.05.64322
G8R-19195726.07.78457
G8R-22226630.010.64608


4. Applications

Lifting, Cargo Block, Hoist, and etc.
