product Image

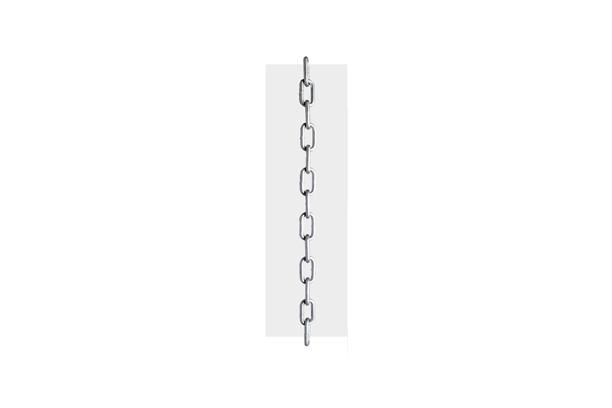

G80 Chain (Lashing)
Model Name
-
Series
Chain
View All
Data
-
Manufacturer information
provider logo
IL SHIN MARINE SERVICE

Ship outfitting, Chain, etc.

Problem with product info?
Update request
Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123991
Product Name
G80 Chain (Lashing)
Model Name
-
Size
-
Weight
-
Product Details

1.  Feature

- POSCO alloy Steel raw Material

- Welding Method : flash Butt Welding

- Heat Treatment Process : Quenching / Tempering

- Much better Tensile Strength and elasticity



2. Raw Material : Grade 80 Alloy Steel

POSCO alloy raw material composed of C, Si, Mm, P, V.



3. Specification

ITEMDiameter(mm)Pitch P (mm)Inside WidthWeight/mBreaking Load (KN)
G8L-6635100.644
G8L-9953151.4100
G8L-111164182.1151
G8L-131380222.9210
G8L-13.513.58022230


4. Applications

Binding Timber Deck Cargo, Fishing net, and Etc.
