product Image
JIS F-3410 Eye Plate
Model Name
-
Series
Hull Fitting (Ship Outfitting)
View All
Data
-
Manufacturer information
provider logo
IL SHIN MARINE SERVICE

Ship outfitting, Chain, etc.

Problem with product info?
Update request
Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123969
Product Name
JIS F-3410 Eye Plate
Model Name
-
Size
-
Weight
-

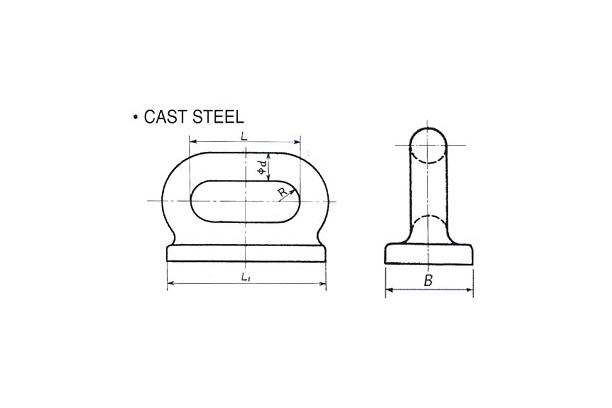

Product Details

Nominal load (mm)

d (mm)

L (mm)

L1 (mm)

B (mm)

MASS KGS (mm)

3

28

85

130

60

2.44

5

34

100

150

70

3.88

7.5

42

115

180

100

7.50

10

50

135

210

120

11.7

15

60

160

250

140

20.0
