This product is manufactured by
IL SHIN MARINE SERVICE

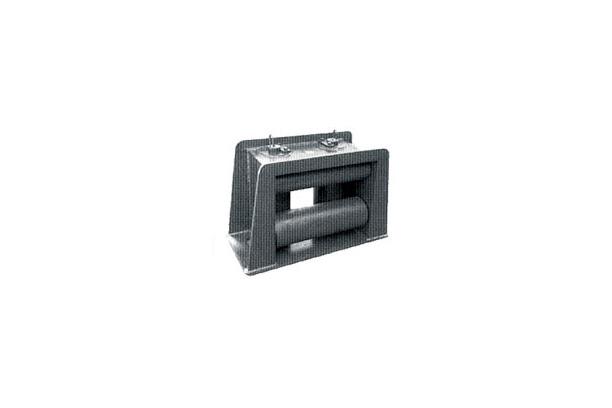

JIS F 2026 Fairlead With Horizontal Roller
Model Name
-
Data
-
Manufacturer information
IL SHIN MARINE SERVICE
Ship outfitting, Chain, etc.
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
IL SHIN MARINE SERVICE
Product Type
Machine
Brand
-
SKU
123966
Product Name
JIS F 2026 Fairlead With Horizontal Roller
Model Name
-
Size
-
Weight
-
Product Details
NOMINAL DIA (mm) | NOMINAL DIA | ||||
B1 (mm) | D (mm) | D1 (mm) | H (mm) | L1 (mm) | |
140 | 355 | 90 | 140 | 480 | 805 |
160 | 405 | 110 | 160 | 515 | 890 |
180 | 455 | 135 | 180 | 560 | 960 |
200 | 505 | 160 | 200 | 590 | 1049 |
250 | 610 | 200 | 250 | 715 | 1303 |
315 | 715 | 240 | 300 | 870 | 1562 |
