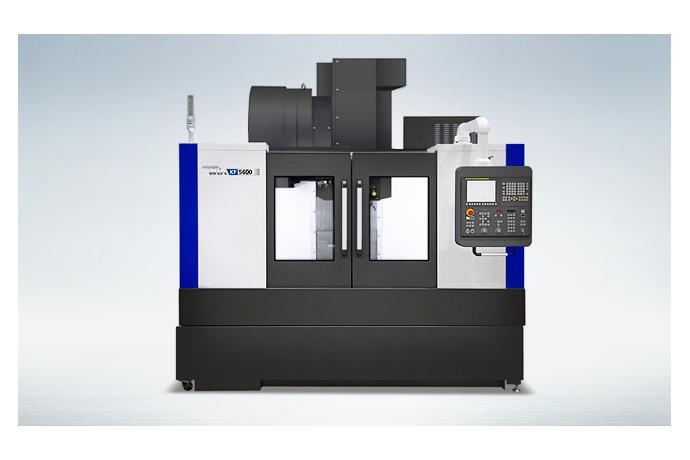

High Speed M/C
Model Name
KF5600 Series
Series
Vertical Machining Centers
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
38038
Product Name
High Speed M/C
Model Name
KF5600 Series
Size
-
Weight
-
Product Details

Features

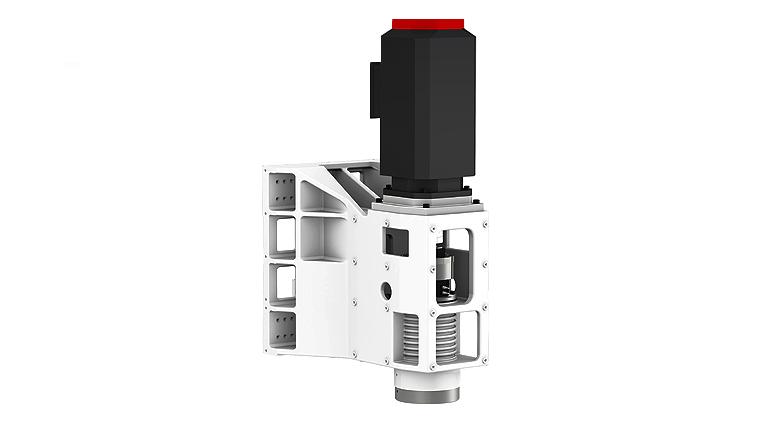

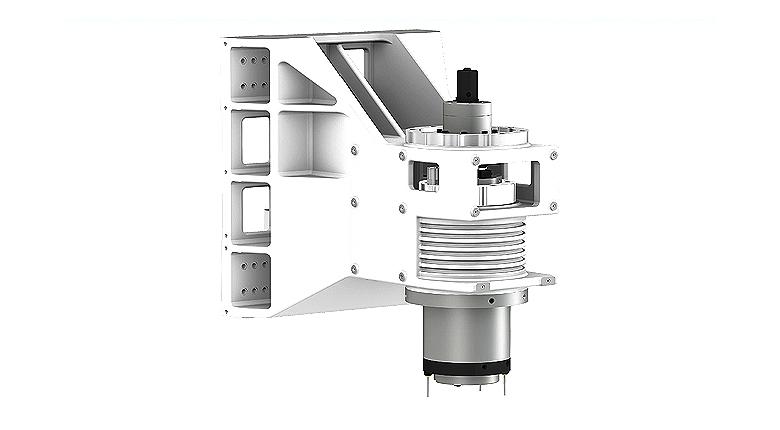

Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K, 20K)

Increases strength through structural analysis

Expands machining domain with y-axis 560mm design

Shortens not-cutting time with rapid feeds (40/40/36m/min.)

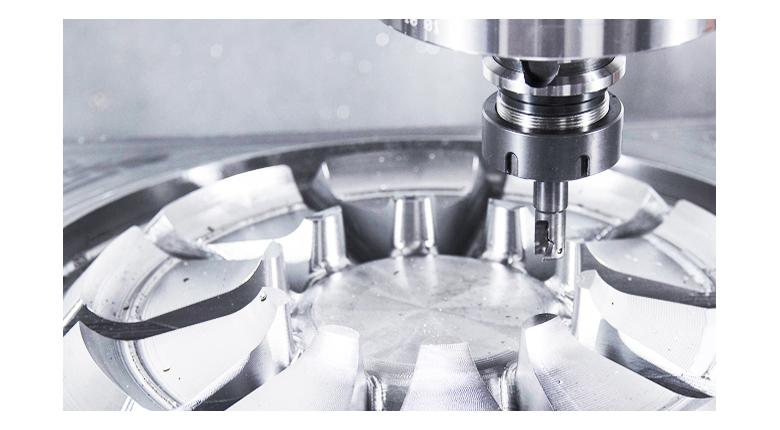

Mould packages for optimum mould manufacturing (20K built-in)



Specifications

Description Unit KF5600(STD) KF5600(OPT1) KF5600(OPT2) KF5600(OPT3)
Table Size mm 1250×560 1250×560 1250×560 1250×560
Max. Load Capacity kg 1,000 1,000 1,000 1,000
Spindle Driving Method - Direct Direct Built in Built in

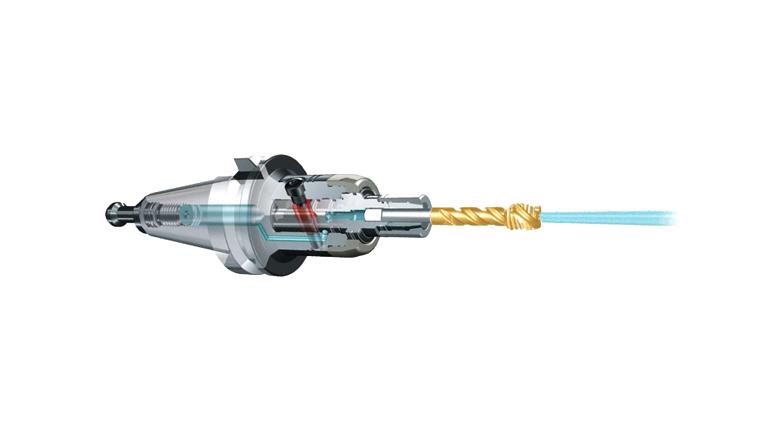

Spindle Taper - BBT40 BBT40 BBT40 BBT40
Spindle RPM r/min 8,000 12,000 15,000 20,000
Spindle Power kw 15/11 18.5/11 25/22 22/18.5
Spindle Torque N.m 286/143 118/70 167/95 98/80

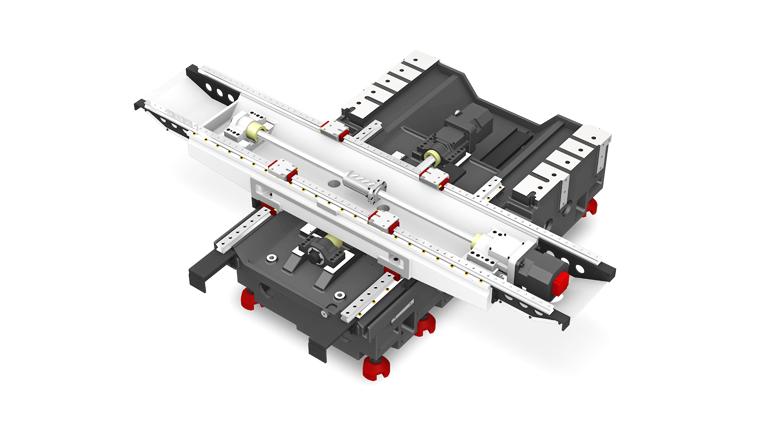

Travel(X/Y/Z) mm 1100/560/520 1100/560/520 1100/560/520 1100/560/520
Rapid Feed Rate(X/Y/Z) m/min 40/40/36 40/40/36 48/48/48 40/40/36
Slide Type - LM LM LM LM

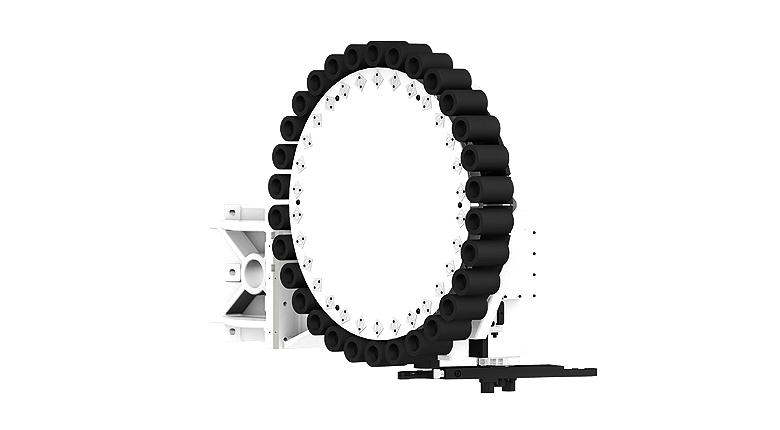

No. of Tools EA 30 30 30 30
Tool Change Time
(Chip To Chip)		 sec 3.2 3.2 3.2 3.2
