Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more
Cycle time reducing structure for maximum productivity

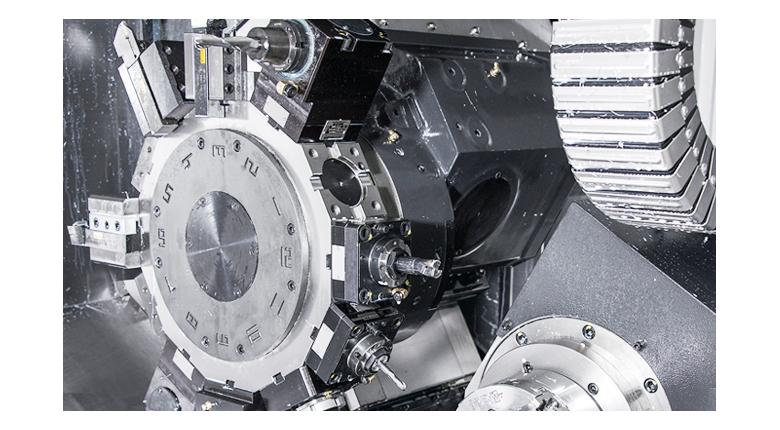

Multi-tasking operation with wedge type Y-axis BMT65P turret

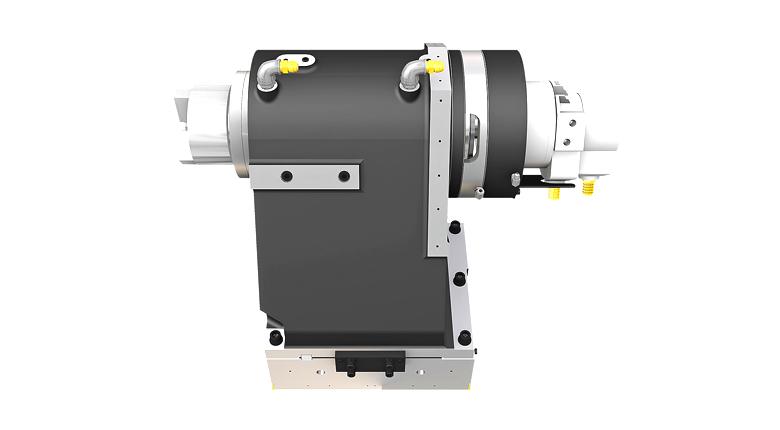

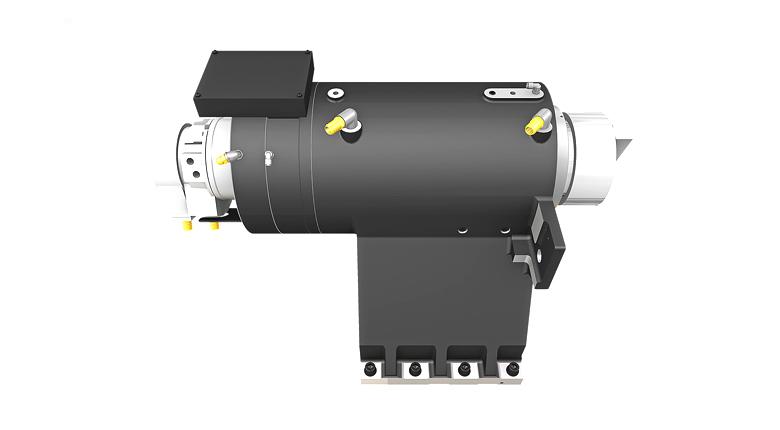

Integrated processing through synchronized control of Main/Sub spindle (“S” Type)

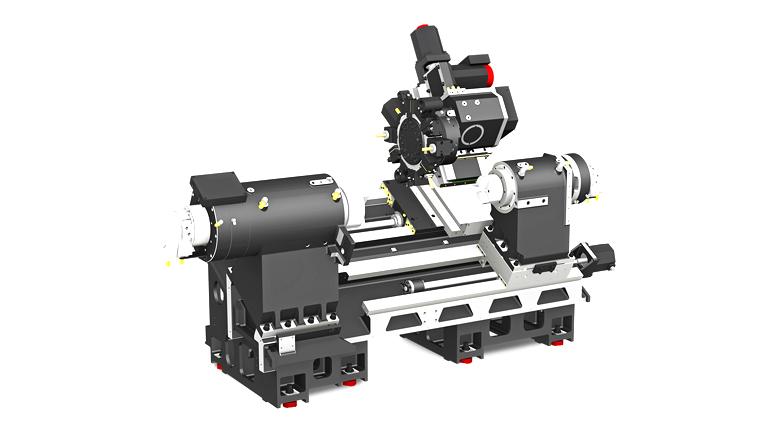

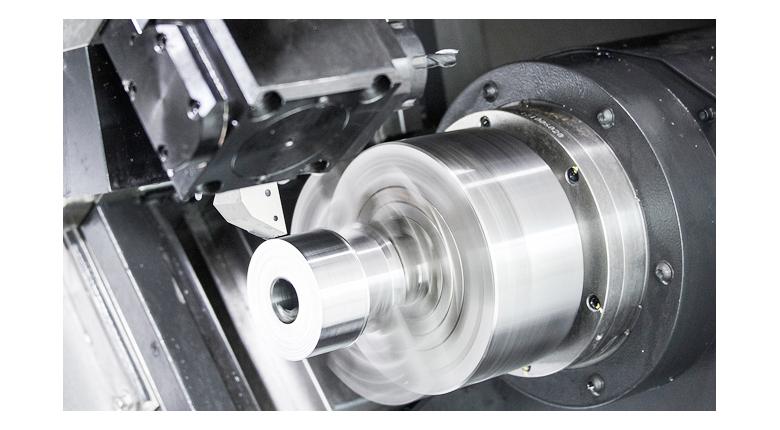

High performance heavy duty cutting enabled with box guideways
Improved maintenance through locating lubrication mechanisms on the front of machine
| Description | Unit | L3000Y | L3000SY | L3000LY |
| Max Turning Dia | mm | 420 | 420 | 420 |
| Max Turning Length | mm | 760 | 760 | 1,280 |
| Chuck Size | inch | 12″ | Main 12″ Sub 6″ |
12″ |
| Driving Method | - | Built in | Built in | Built in |
| Spindle RPM | r/min | 3,000 | 3,000 | 3,000 |
| Spindle Output | kw | 25/37 | 25/37 | 25/37 |
| Spindle Torque | N.m | 1,003/1,262 | 1,003/1,262 | 1,003/1,262 |
| Travel(X/Y/Z) | mm | 265/120/830 | - | 265/120/1,350 |
| Travel(X/Y/Z/ZB) | mm | - | 265/120/830/830 | - |
| Rapid Travel(X/Y/Z) | m/min | 30/10/30 | - | 30/10/30 |
| Rapid Travel(X/Y/Z/ZB) | m/min | - | 30/10/30/30 | - |
| Slide Type | - | BOX | BOX | BOX |
| No. of Tools | EA | 12 | 12 | 12 |
| Tool Size | mm | 25/50 | 25/50 | 25/50 |
| Milling Tool Speed | r/min | 5,000 | 5,000 | 5,000 |
