Horizontal T/C for AL wheel cutting - Max cutting wheel size : 24"
Optimized bed design for high quality AL wheel cutting (1Ton increased compare to existing model)
Roller type LM guide with ultra wide witdth

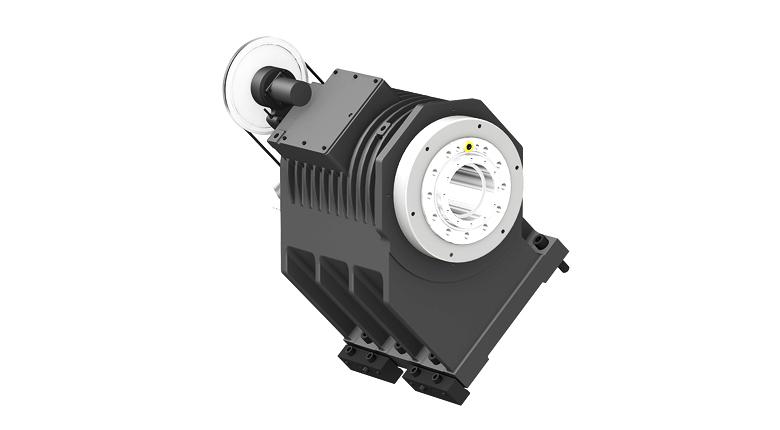

Powerful spindle for heavy-duty cutting (92.4N.m of Torque has increased compare to the existing model)
ย
| Description | Unit | KL6500AW |
| Max Turning Dia | mm | 660 |
| Max Turning Length | mm | 720 |
| Wheel Size | inch | 24โณ |
| Driving Method | - | Belt |
| Spindle RPM | r/min | 2,000 |
| Spindle Output | kw | 30/37 |
| Spindle Torque | N.m | 553 |
| Travel(X/Z) | mm | 400/720 |
| Rapid Travel(X/Z) | m/min | 20/24 |
| Slide Type | - | LM |
| No. of Tools | EA | 12 |
| Tool Size | mm | 32/63 |
