Mold Machining
Model Name

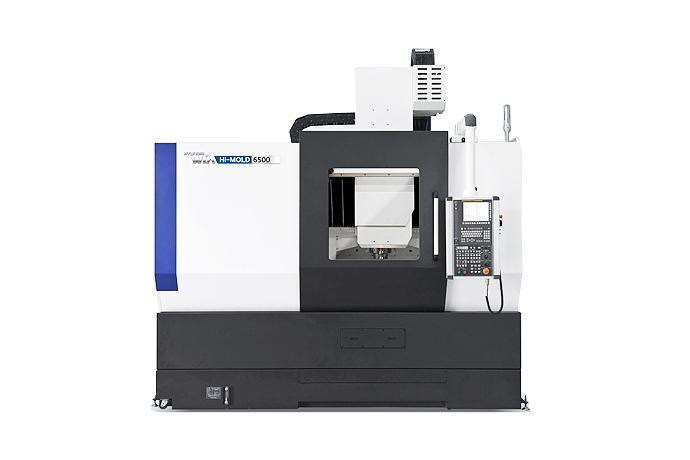

Hi-MOLD6500
Series
Vertical Machining Centers
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
13890
Product Name
Mold Machining
Model Name
Hi-MOLD6500
Size
-
Weight
-
Product Details

Features

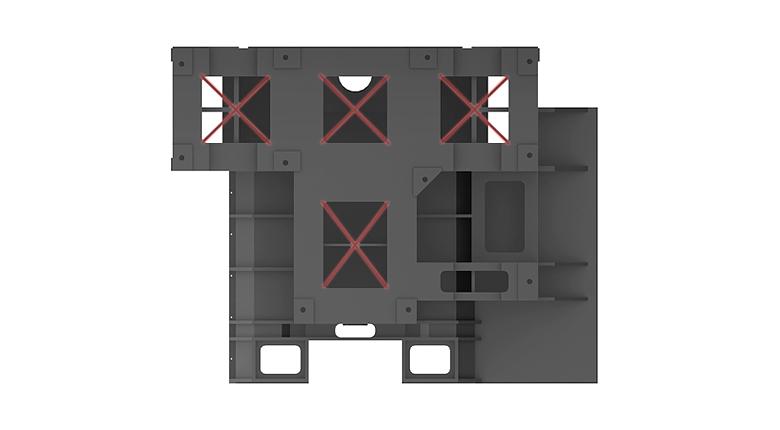

Wall type machining center for utmost quality of molding

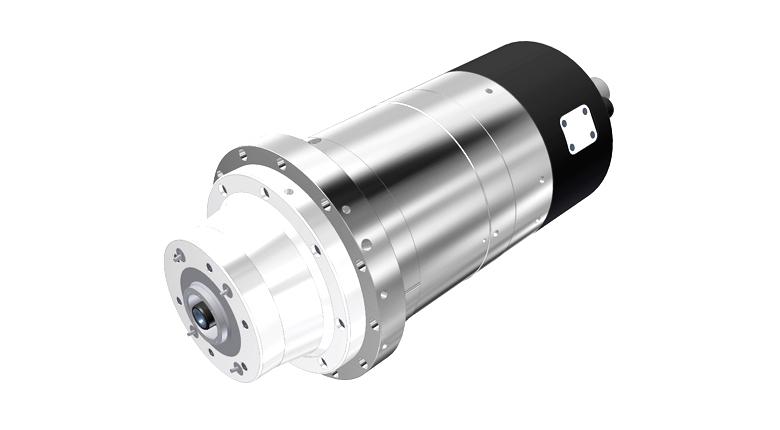

High-precision spindle design with precision angular contact bearing

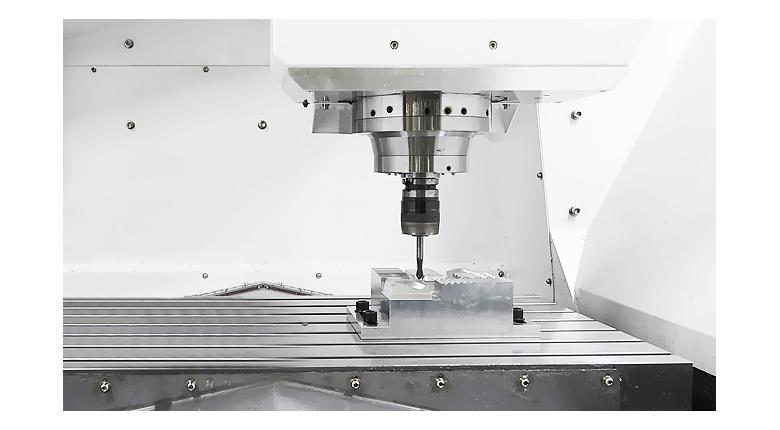

20,000 rpm built-in spindle for high quality surface finish (Option : 24,000 rpm)

Ball screw nut cooling system on all axes is standard

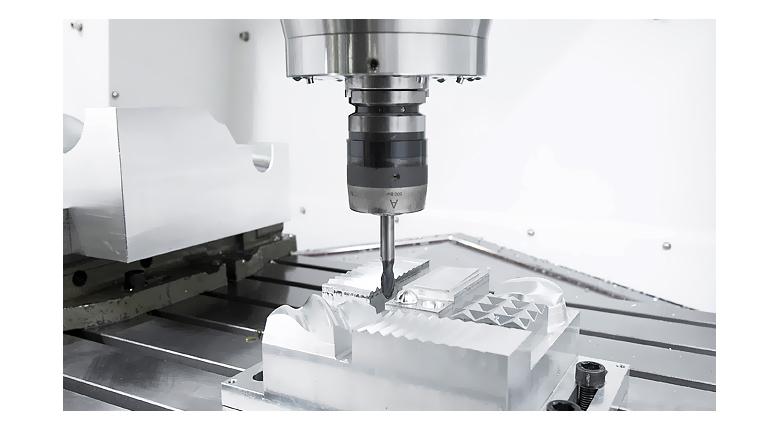

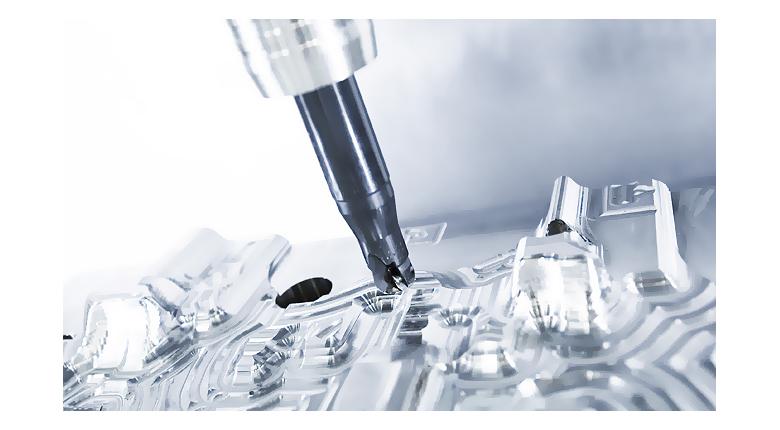

Hyundai WIA mold package delivers optimal processing of mold parts



Specifications

Description Unit Hi-MOLD6500
Table Size mm 1,200 x 650
Max. Load Capacity kg 1000
Spindle Driving Method - Built in
Spindle Taper - BBT40
Spindle RPM r/min 20,000
Spindle Power kw 22/18.5
Spindle Torque N.m 53/37(39/27.3)
Travel(X/Y/Z) mm 1,100/650/550
Rapid Feed Rate(X/Y/Z) m/min 40/40/40
Slide Type - LM
No. of Tools EA 30
Tool Change Time
(Chip To Chip)		 sec 5
CNC - F31iB
