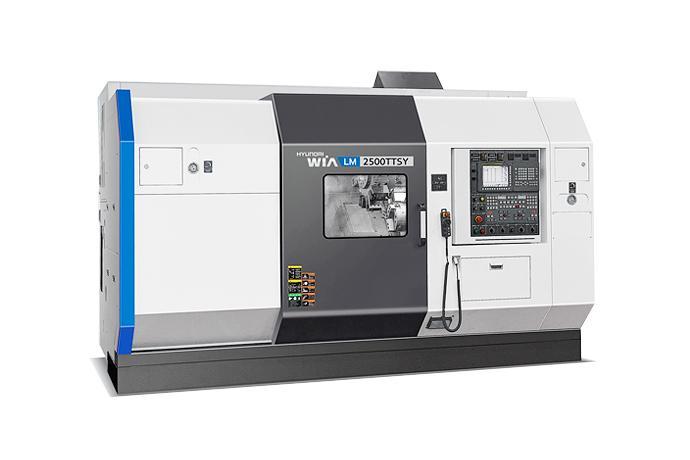

Multi-Axis T/C
Model Name
LM2500TT
Series
CNC Turning Center
View All
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Product Type
Machine
Brand
-
SKU
13869
Product Name
Multi-Axis T/C
Model Name
LM2500TT, LM2500TTS, LM2500TTM
Size
-
Weight
-
Product Details

Features

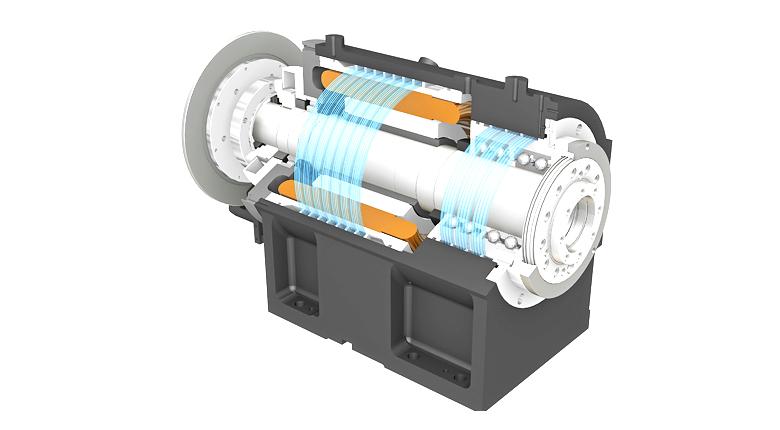

Large output built-In spindle motor

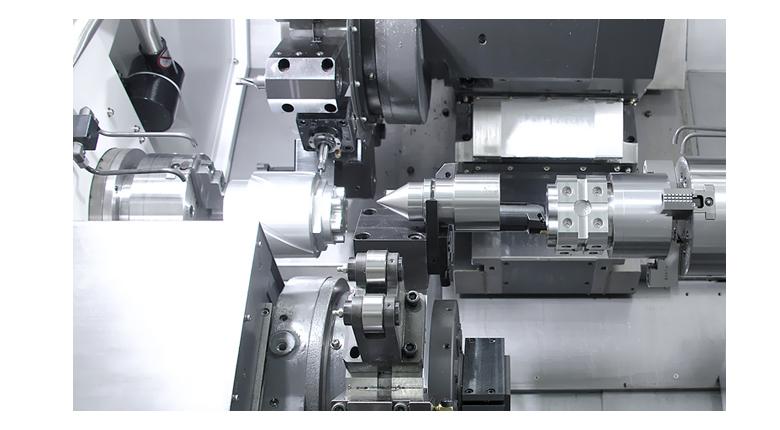

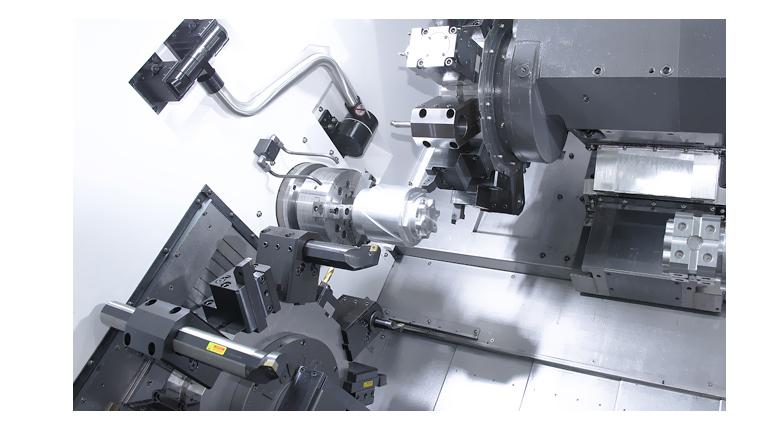

High productivity guaranteed by adoption of upper and lower turrets

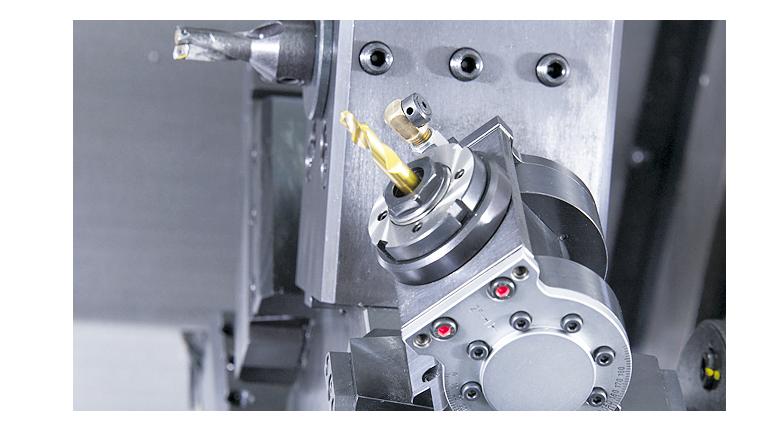

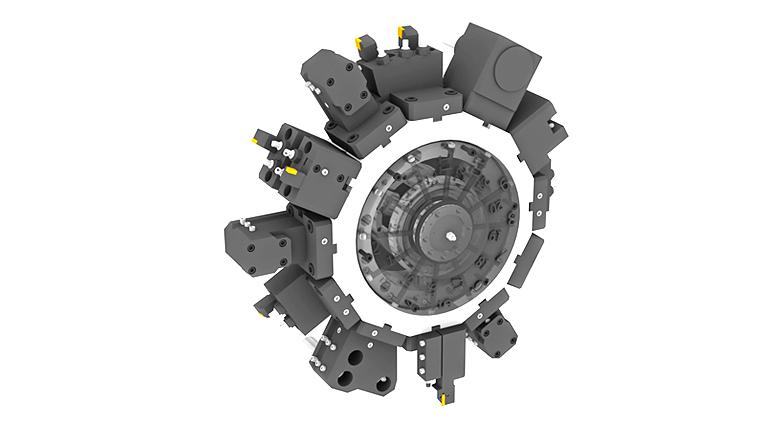

Highly sturdy BMT turret adopted

Combined processing possible by the addition of Y axis to the upper turret (TTSY specifications)

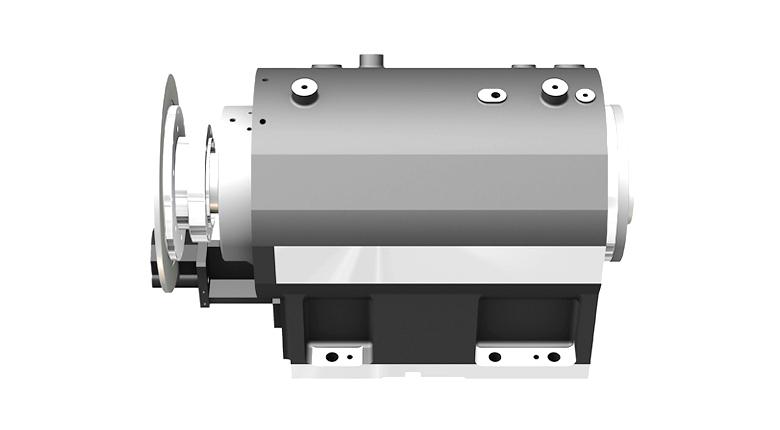

Specific cutting time reduced due to synchronous rotation control of the opposite-type main spindle

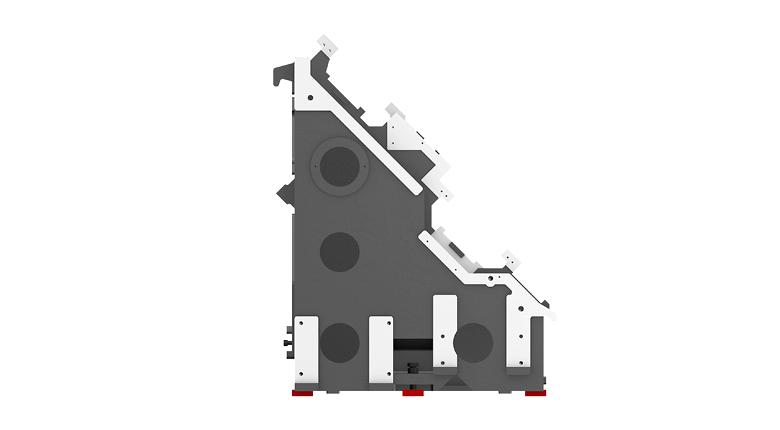

High degree of sturdiness achieved by adopting all axis box guide (LM2500TT Series)

Design of the hybrid-type feed shaft combining box guide and roller guide (LM1600/1800TT Series)



Specifications

Description Unit LM2500TT LM2500TTS LM2500TTM
Max Turning Dia mm 390 390 390
Max Turning Length mm 900 900 900
Chuck Size inch Main 10″
Sub 10″		 Main 10″
Sub 10″		 Main 10″
Sub 10″
Driving Method - Built in Built in Built in
Spindle RPM r/min 4,000 4,000 4,000
Spindle Output kw 15/26 15/26 15/26
Spindle Torque N.m 295/433 295/433 295/433
Travel(X1/X2/Z1/Z2) mm 270/190/920/920 - 270/190/920/920
Travel(X1/X2/Z1/Z2/ZB) mm - 270/190/920/920/920 -
Rapid Travel(X1/X2/Z1/Z2) m/min 24/24/24/24 - 24/24/24/24
Rapid Travel(X1/X2/Z1/Z2/ZB) m/min - 24/24/24/24/24 -
Slide Type - BOX BOX BOX
No. of Tools EA 2 x 12 2 x 12 2 x 12
Tool Size mm 25/50 25/50 25/50
Milling Tool Speed r/min - - 4,000
CNC - F31i F31i F31i
