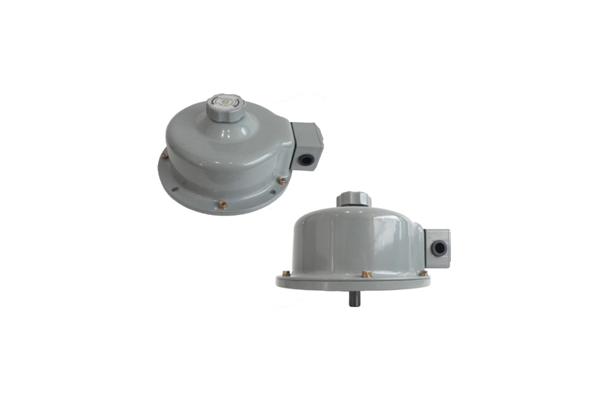

Product Name AG Break Motor
Model HAG-25D2
Series AG BREAK MOTOR
Catalog DRAWING-HWANGHAE ELECTRIC-AG BREAK MOTOR-HAG-25D2.pdf
Product Description


- The Allowable tolerance of dimension is -0, +5mm
- The dimension can be changed for improvement without notice



HAG-25D2  1.5KW

STANDARD 1.5kwUnit50Hz60Hz
200V220V380V415V440V220V240V380V440V
LOAD CURRENTA9.78.85.14.64.48.57.84.94.2
STARTING CURRENTA27.028.716.615.214.330.127.617.415.0
RPMrpm14001700
EFFICIENCY%74.876.3
RATED TORQUEkg/m1.040.86
STARTING TORQUE%210200
INSULATIONCLASSBB
WEIGHTkg28.028.0
BRAKE TORQUE%250300

- Single Voltage is applied except for 200V, 220V, and 380V
