This product is manufactured by
HWANGHAE ELECTRIC

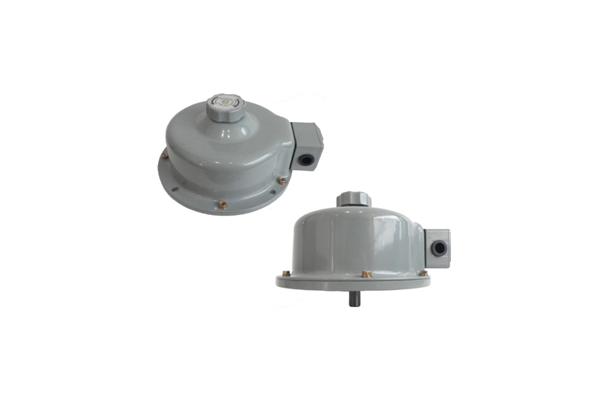

AG Break Motor
Model Name
HAG-20D
Manufacturer information
HWANGHAE ELECTRIC
Air gab brake motor and fan manufacturer, Ring blower, Small high speed blower, Turbo blower and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HWANGHAE ELECTRIC
Product Type
Machine
Brand
-
SKU
125336
Product Name
AG Break Motor
Model Name
HAG-20D
Size
-
Weight
-
Product Details
- The Allowable tolerance of dimension is -0, +5mm
- The dimension can be changed for improvement without notice
HAG-20D 0.4KW
| STANDARD 0.4kw | Unit | 50Hz | 60Hz | |||||||
| 200V | 220V | 380V | 415V | 440V | 220V | 240V | 380V | 440V | ||
| LOAD CURRENT | A | 2.26 | 2.06 | 1.19 | 1.09 | 1.03 | 2.11 | 1.93 | 1.22 | 1.05 |
| STARTING CURRENT | A | 7.90 | 8.70 | 5.00 | 4.60 | 4.30 | 8.26 | 7.57 | 4.77 | 4.10 |
| RPM | rpm | 1420 | 1710 | |||||||
| EFFICIENCY | % | 73.3 | 75.0 | |||||||
| RATED TORQUE | kg/m | 0.27 | 0.23 | |||||||
| STARTING TORQUE | % | 230 | 210 | |||||||
| INSULATION | CLASS | B | B | |||||||
| WEIGHT | kg | 14.0 | 14.0 | |||||||
| BRAKE TORQUE | % | 250 | 300 | |||||||
- Single Voltage is applied except for 200V, 220V, and 380V
