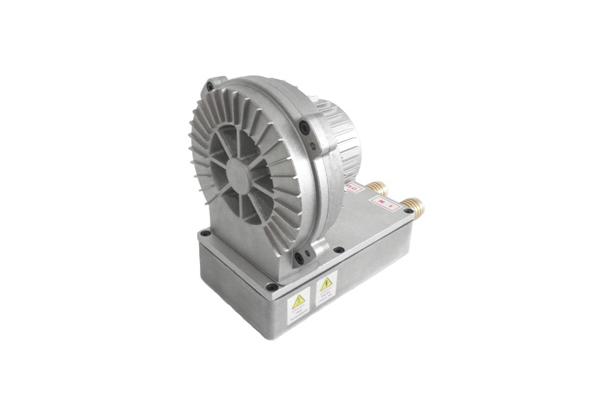

Controller With Built-in IMDS
The Controller With Built-in IMDS (Integrated Motor Driver System) enables you to select desired level of air flow and pressure through the variable motor RPM adjustment.
BLOWER
- The allowable tolerance of dimension is -0, +5mm
- The dimension can be changed for improvement without notice
SILENCER
- The allowable tolerance of dimension is -0, +5mm
- The dimension can be changed for improvement without notice
PERFORMANCE & SPECIFICATION
Model | Motor | |||||||
Rated | Max. | |||||||
Input | Voltage | Current | Speed | Input | Voltage | Current | Speed | |
W | Vdc | A | rpm | W | Vdc | A | rpm | |
MINI-H100 | 46 | 20 | 2.22 | 6750 | 90 | 24 | 3.8 | 8300 |
MINI-H200 | 82 | 19 | 4.3 | 7166 | 230 | 24 | 9.8 | 8500 |
MINI-H300 | 180 | 20 | 9.5 | 7800 | 420 | 24 | 16.5 | 10500 |
MINI-H400 | 340 | 20.5 | 16.5 | 7100 | 700 | 24 | 28 | 9000 |
Model | Motor | ||||||||
Blower Only | With Sliencer | ||||||||
Rated | Max. | Weight | Max. | Sound | Weight | ||||
Air Flow | Pressure | Air Flow | Pressure | Air Flow | Pressure | Level | |||
LPM | kPa | LPM | kPa | Kg | LPM | kPa | dB(A) | Kg | |
MINI-H100 | 130 | 5 | 300 | 8 | 1.1 | 260 | 8 | 53 | 1.8 |
MINI-H200 | 260 | 5 | 500 | 14 | 1.6 | 450 | 14 | 56 | 2.8 |
MINI-H300 | 400 | 8 | 850 | 19 | 2.5 | 650 | 16 | 61 | 4.1 |
MINI-H400 | 600 | 10 | 1050 | 24 | 4.1 | 950 | 22 | 62 | 6.2 |
Above test was done at 15℃, 1013mbar atmospheric pressure. The allowable tolerance of performance value is ± 10&
Lowe Voltage BLDC Blower
Above test was done at 20℃, 1013mbar atmospheric pressure. The allowable tolerance of performance value is ±5%
DRIVER SPECIFICATION
ELECTRICAL DATA | |
RATED VOLTAGE | 24 VDC |
MAX OUTPUT CURRENT | 5 A |
OPERATING TEMPERATURE | -20℃~ 105℃ |
MOTOR DRIVE FREQUENCY | 22.5 KHz |
SPEED CONTROL VOLTAGE | 0 ~ 10 VDC |
NOTE
- Temperature : Working Air 0℃ to 40℃, Ambient Air 0℃ to 40℃.
- RPM can be controlled by the input voltage.
- When the blower is used for vacuuming, there is an approximate reduction of 5% in the performance.
- Hard Mounting cvan be made by clamping around the motor's AL casing.
- 2-wire power connection. (Yellow : (+) DC, Black : (-) DC), Improper connection will damage the blower.
