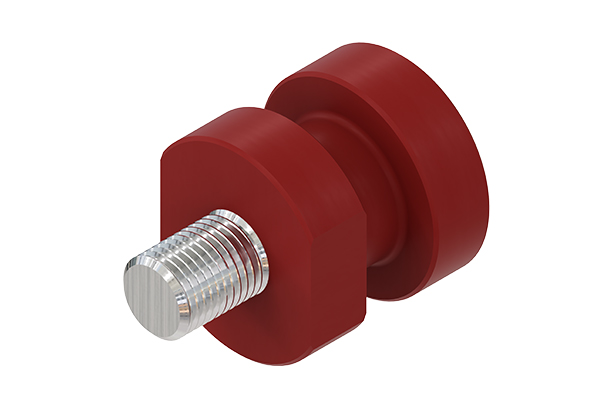

Standard Threaded Tenon with Brake
Model Name
-
Series
Accessories
Data
Catalog-Hps Asia Limited-Standard Threaded Tenon with Brake
Manufacturer information
provider logo
HPS ASIA LIMITED

Manufacturer of Hydraulic Systems, Cylinders for Plastic and Aluminum Injection

Problem with product info?
Update request
Manufacturer
HPS ASIA LIMITED
Product Type
Machine
Brand
-
SKU
138454
Product Name
Standard Threaded Tenon with Brake
Model Name
-
Size
-
Weight
-
Product Details
Ø NB (mm) Ø NC (mm) N (mm) R (mm) SW (mm) V (mm) Internal Thread Part number
12 8 5 0.5 10 10 M6x1 NXT12M6
16 10 6 0.5 13 15 M8x1.25 NXT16M8
20 10 6.5 1 17 15 M8x1.25 NXT20M8
25 16 7 1 22 15 M8x1.25 NXT25M8
25 16 7 1 22 15 M10x1.5 NXT25M10
25 16 7 1 22 15 M12x1.75 NXT25M12
25 16 7 1 22 15 M12x1.25 NXT25M12F
32 20 10 1 27 15 M8x1.25 NXT32M8
32 20 10 1 27 15 M10x1.5 NXT32M10
32 20 10 1 27 15 M12x1.75 NXT32M12
32 20 10 1 27 15 M12x1.25 NXT32M12F
40 26 12 1.5 36 20 M12x1.75 NXT40M12
40 26 12 1.5 36 20 M12x1.25 NXT40M12F
40 26 12 1.5 36 20 M16x2 NXT40M16
40 26 12 1.5 36 20 M16x1.5 NXT40M16F
50 32 14 1.5 46 25 M16x2 NXT50M16
50 32 14 1.5 46 25 M16x1.5 NXT50M16F
50 32 14 1.5 46 25 M20x2.5 NXT50M20
50 32 14 1.5 46 25 M20x1.5 NXT50M20F
62 42 17 2 56 30 M20x2.5 NXT62M20
62 42 17 2 56 30 M20x1.5 NXT62M20F
62 42 17 2 56 30 M27x3 NXT62M27
62 42 17 2 56 30 M27x2 NXT62M27F
79 52 20 2 75 40 M27x3 NXT79M27
79 52 20 2 75 40 M27x2 NXT79M27F
79 52 20 2 75 40 M33x3.5 NXT79M33
79 52 20 2 75 40 M33x2 NXT79M33F
95 64 24 2 88 50 M33x3.5 NXT95M33
95 64 24 2 88 50 M33x2 NXT95M33F
95 64 24 2 88 50 M42x4.5 NXT95M42
95 64 24 2 88 50 M42x2 NXT95M42F
122 80 28 2 115 63 M42x4.5 NXT122M42
122 80 28 2 115 63 M42x2 NXT122M42F
122 80 28 2 115 63 M48x5 NXT122M48
122 80 28 2 115 63 M52x2 NXT122M52F
HPS ASIA LIMITED
Manufacturer of Hydraulic Systems, Cylinders for Plastic and Aluminum Injection
Since 1990, HPS International has been developing, manufacturing and selling a wide range of hydraulic cylinders.Recognized worldwide thanks to the red color of its cylinders, HPS is today an international company, close to its customers.Present in 25 countries, HPS International has 14 subsidiaries, 11 partners and 6 manufacturing plants worldwide. Our Engineering Office, constantly designs, develops and improves all HPS products, in order to best meet the requirements of our customers.Indeed, we offer a range of products: block cylinders, round cylinders, tie rods cylinders, and special cylinders. We also offer tailor made cylinders specially designed to meet your needs. Our expertise and our machines allow us to produce Ø16 to Ø 1000 mm bore cylinders for strokes up to 10.000 mm. We have a large stock of cylinders ready to be assembled and shipped with a possible factory departure within 24/48/72 hours. To guarantee optimal quality of our products, we choose the best raw material suppliers to match our high standard requirements.To maintain this level of quality and speed, our teams are responsive and at your entire disposal to advice you in order to find the adapted solution.
