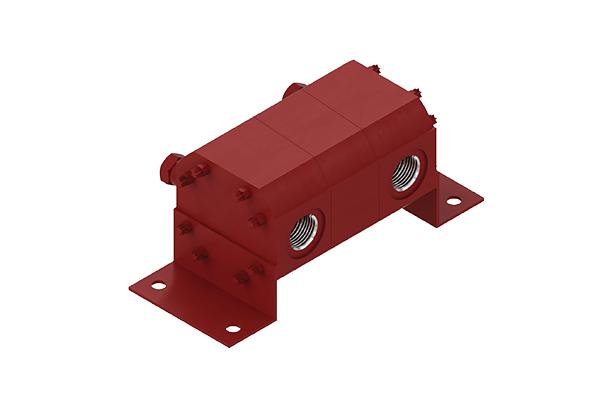

Rotary Gear Flow Dividers
Model Name
DR 1-2
Series
Accessories
View All
Data
Catalog-Hps Asia Limited-Rotary Gear Flow Dividers
Manufacturer information
provider logo
HPS ASIA LIMITED

Manufacturer of Hydraulic Systems, Cylinders for Plastic and Aluminum Injection

Problem with product info?
Update request
Manufacturer
HPS ASIA LIMITED
Product Type
Machine
Brand
-
SKU
138430
Product Name
Rotary Gear Flow Dividers
Model Name
DR 1-2, DR 2-2
Size
-
Weight
-
Product Details



Manufacturer HPS International
Displacement per section (cm³) 2,11
Part number DR 1-2
Nr of section 2
Flowrate per section at 2000 RPM (l/min)  4,22
Min Inlet flowrate for a use at 2000 RPM (l/min)  8,44
Flowrate per section at 3500 RPM (l/min) 7,39
Inlet flowrate for a use at 3500 RPM (l/min) 14,77
Pressure (bar) Inlet 200
Pressure (bar) Outlet 240



Manufacturer HPS International
Displacement per section (cm³) 4,23
Part number DR 2-2
Nr of section 2
Flowrate per section at 2000 RPM (l/min)  8,46
Min Inlet flowrate for a use at 2000 RPM (l/min)  16,92
Flowrate per section at 3500 RPM (l/min) 14,81
Inlet flowrate for a use at 3500 RPM (l/min) 29,61
Pressure (bar) Inlet 200
Pressure (bar) Outlet 240
