Description

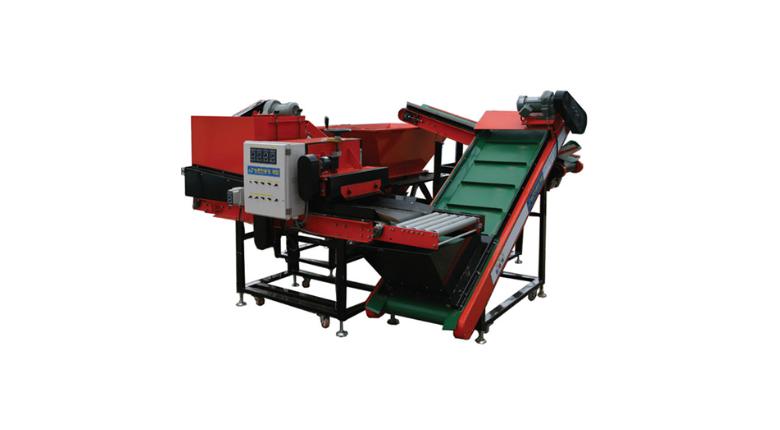

Medium Pressing Filler for Forest Nursery (PF-400)
|
Production quantity |
400Tray/hr |
|
|
Dimension |
L |
2,500 |
|
W |
2,500 |
|
|
H |
1,300 |
|
|
Weight |
900kg |
|
|
Required power |
990W |
|
|
Compressed air |
6kg/cm2 |
|
|
Manifolder |
24L, 24H, 28, 40 |
|
Applicable forestry nursery tray
|
Description |
24holes(L) tray |
24holes(H) tray |
28holes tray |
40holes tray |
|
Tray |
 |
 |
 |
 |
|
Use |
Larch |
acorn, honey oak |
Cypress, Thuja |
Pine tree, Koreannut pine |
|
Cell spec. |
6.4Φ×13cm(D) |
6.0Φ×16cm(D) |
5.7Φ×16cm(D) |
4.7SQ×16cm(D) |
|
Cell capacity |
320㎖ |
350㎖ |
300㎖ |
250㎖ |
|
Total |
7.7ℓ |
8.4ℓ |
8.4ℓ |
10ℓ |
•Freely adjust the degree of compression (150%±α)
•Optional for 1 times compression or 2 times compression
•Automatically able to recovery excess medium.
•Production quantity 400Tray/hr
Pot Flower Mass Production System
Natural Soil Filler (FL-4000)
|
Production quantity |
400pot / hour |
|
|
Dimension (mm) |
L |
m3,700 |
|
W |
2,300 |
|
|
mH |
800 |
|
|
Weight |
1,800kg |
|
|
Power (W) |
3P 1,5001P 310 |
|
•Able to fill mixed material such as polishing sand, yellow soil, medium etc
•Possible to adjust the depth of filler
•Repeated work of automatic supply-filler-collection
