AFGR-800CS

•Applicable vegetable: watermelon, melon, cucumber, melon, red pepper, tomato

•Productivity: over 800 trees (When skilled, work efficiency is highly increased)

•Main composition: grafting robot+tongs supply apparatus+air compressor(option 3HP)

•Grafting tongs: Specified plastic tongs(Option)

•Dimension/Weight: 670D×1,080W×950H / 170kgs (Not included in our supply scope)

•1Φ220V 300W (Air compressor not included)

•Manpower of Use: Rootstock supply 1 person, scion supply 1person, assistant manpower 0.25 person

•Composition of economic operation team : When composing grafting line after installing 4 sets it can be composed of 9 persons.

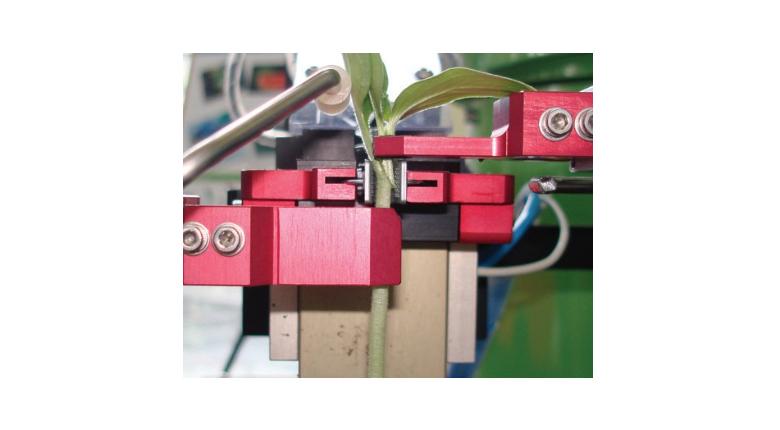

Cucurbitaceae grafting process

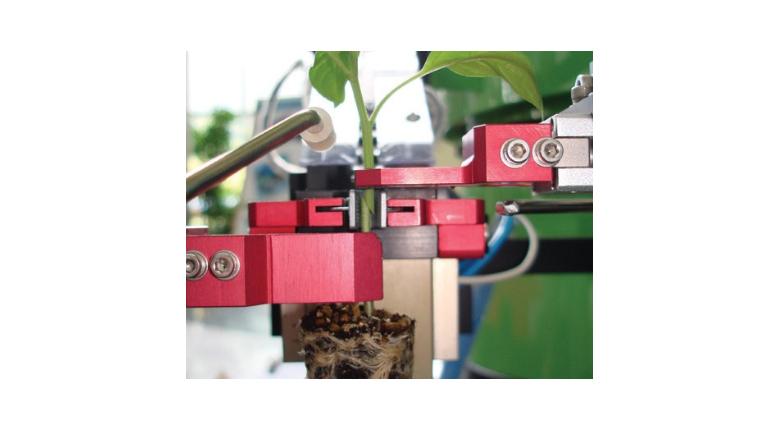

Solanaceae grafting process
