Manufacturer
HANSUNG
Product Type
Machine
Brand
-
SKU
125502
Product Name

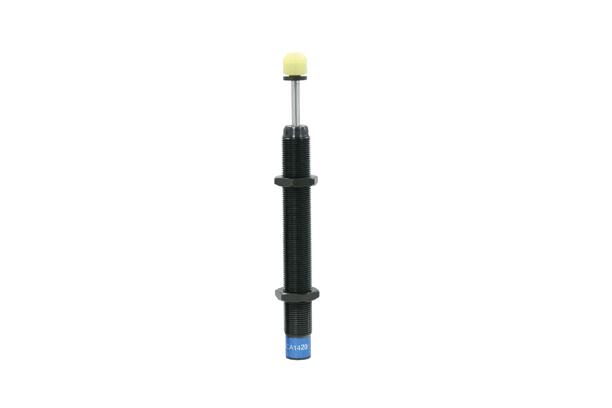

Industrial Shock Absorber
Model Name
SCA1420B, SCA1415-1, SCA1415-2, SCA1415-3, SCA1420-1, SCA1420-2, SCA1420-3
Size
-
Weight
-
Product Details
Dimensions
| Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
| SCA1420B | 20 | 106.5 | 73.5 | 20 | 4 | 11 | 4 | 11 | M14×P1.0 |
Capacity Chart
| Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA1415-1 SCA1415-2 SCA1415-3 | 15 | 15 | 27,000 | Less 7 Less 17 Less 32 | 1,300 | 7~11 | 65 |
| SCA1420-1 SCA1420-2 SCA1420-3 | 20 | 19 | 29,000 | Less 7 Less 17 Less 32 | 1,300 | 7~12 | 80 |
Technical Data
- Impact Velocity range: Less 2(m/s)
- Operating Temperature: -10~60℃
- Material: Steel body with black oxide finish.
Special steel piston rod
- Two Lock Nut is included in each shock absorber.
- All dimensions, Capacities and technical datas listed in this catalog are subject to change without any notice.
