Description

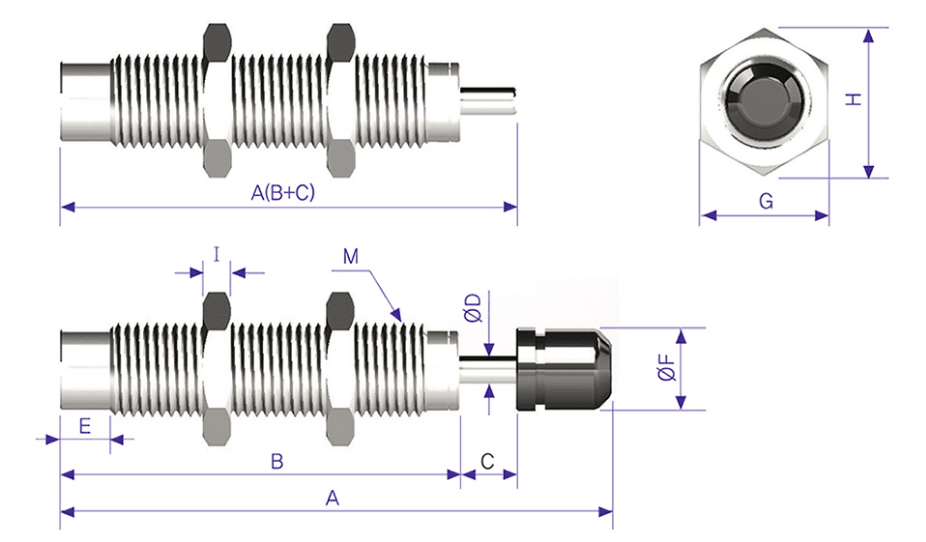

Dimensions
| Model | Stroke | A | B | C | ØD | E | F | G | H | I | M |
| HS1006-N | 6 | 48 | 42 | 6 | 3 | 5 | - | 14 | 161.1 | 3 | M10×1.0P |
| HS1006B-N | 6 | 58 | 42 | 6 | 3 | 5 | 8.8 | 14 | 161.1 | 3 | M10×1.0P |
| HS1008-N | 8 | 52 | 44 | 8 | 3 | 5 | - | 14 | 161.1 | 3 | M10×1.0P |
| HS1008B-N | 8 | 62 | 44 | 8 | 3 | 5 | 8.8 | 14 | 161.1 | 3 | M10×1.0P |

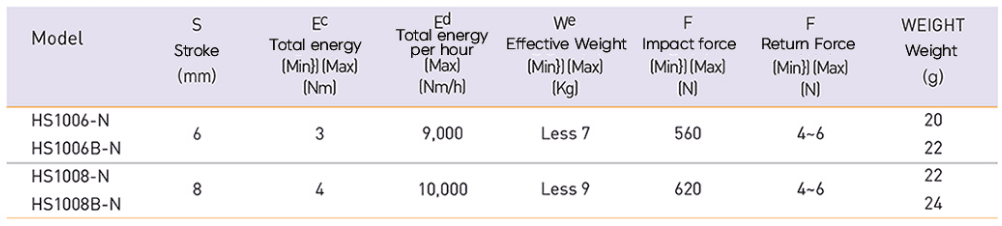

Capacity Chart
| Model | S | E c 총에너지 [MAX] (Nm) | E d 시간당 총에너지 [MAX] (Nm/h) | W e | F 충격력 [MAX] (N) | F R 복귀력 [MIN]~[MAX] (N) | Weight 중량 (g) |
| HS1006-N | 6 | 3 | 9,000 | Less 7 | 560 | 4~6 | 20 |
| HS1006B-N | 6 | 3 | 9,000 | Less 7 | 560 | 4~6 | 22 |
| HS1008-N | 8 | 4 | 10,000 | Less 9 | 620 | 4~6 | 22 |
| HS1008B-N | 8 | 4 | 10,000 | Less 9 | 620 | 4~6 | 24 |

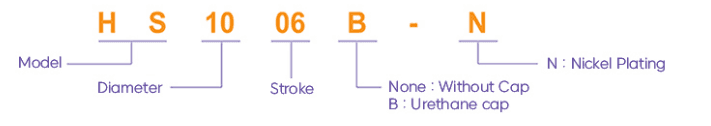

모델 표시 방법

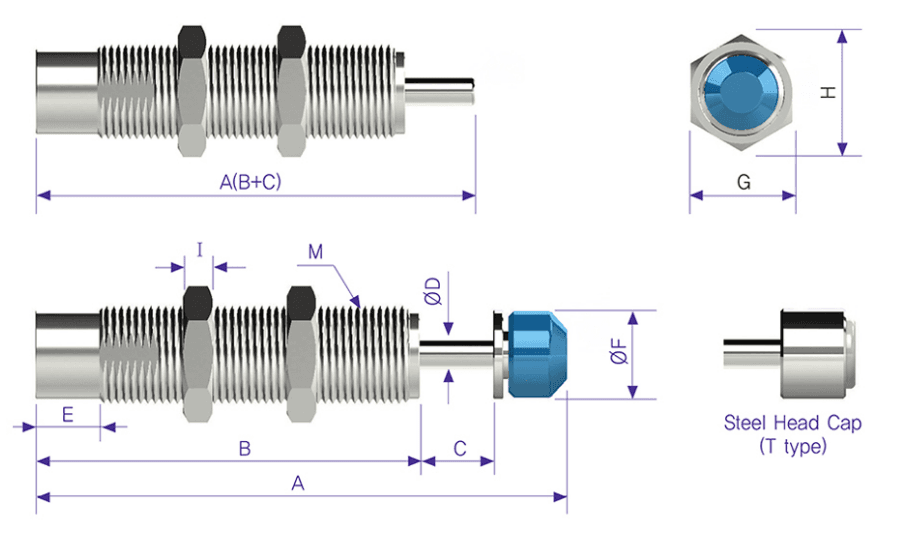

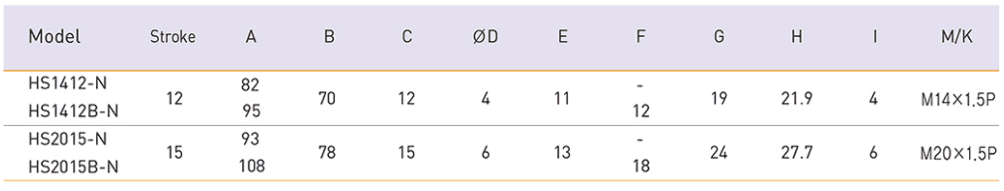

Dimensions
| Model | Stroke | A | B | C | ØD | E | F | G | H | I | M |
| HS1412-N | 12 | 82 | 70 | 12 | 4 | 11 | - | 19 | 21.9 | 4 | M14×1.5P |
| HS1412B-N | 12 | 95 | 70 | 12 | 4 | 11 | 12 | 19 | 21.9 | 4 | M14×1.5P |
| HS2015-N | 15 | 93 | 78 | 15 | 6 | 13 | - | 24 | 27.7 | 6 | M20×1.5P |
| HS2015B-N | 15 | 108 | 78 | 15 | 6 | 13 | 18 | 24 | 27.7 | 6 | M20×1.5P |

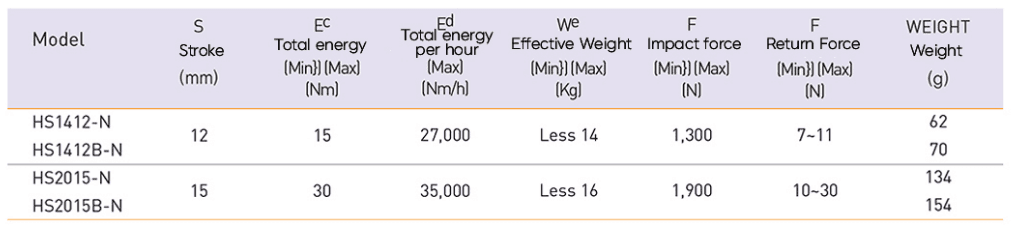

Capacity Chart
| Model | S | E c 총에너지 [MAX] (Nm) | E d 시간당 총에너지 [MAX] (Nm/h) | W e | F 충격력 [MAX] (N) | F R 복귀력 [MIN]~[MAX] (N) | Weight 중량 (g) |
| HS1412-N | 12 | 15 | 27,000 | Less 14 | 1,300 | 7~11 | 62 |
| HS1412B-N | 12 | 15 | 27,000 | Less 14 | 1,300 | 7~11 | 70 |
| HS2015-N | 15 | 30 | 35,000 | Less 16 | 1,900 | 10~30 | 134 |
| HS2015B-N | 15 | 30 | 35,000 | Less 16 | 1,900 | 10~30 | 154 |

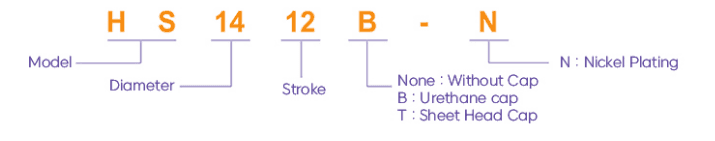

모델 표시 방법
