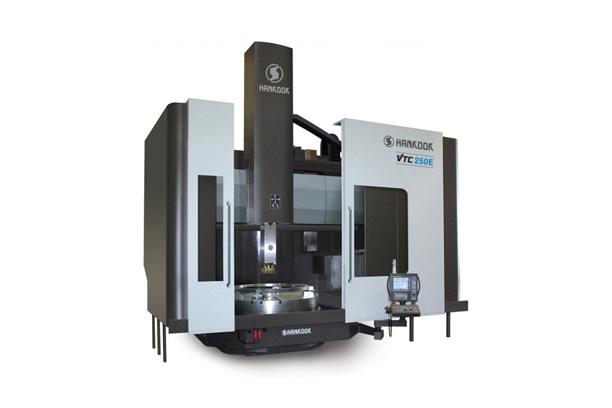

VTB(VTC) 250E

• Elevating cross rail 1,600㎜
• Full controlled C-axis and rotary spindle(VTC)
• Automatic tool changing system 24 tools
• Heavy duty, wide guideways of box type
• Massive one-piece cast iron bed, column, saddle, and cross-rail
• spheroidal-graphite-iron ram (280㎜)

- Max. turning diameter 3,000㎜
- Max. turning height 2,000㎜
- Max. load on table 15,000㎏
- Table diameter 2,500㎜
- Table speeds 1~150rpm
- Table drive motor AC 60/75㎾
- VTC type AC 22/26㎾
- VTC type 15~1,500rpm
