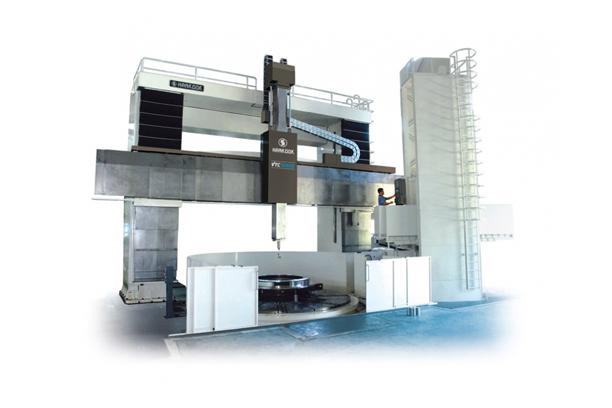

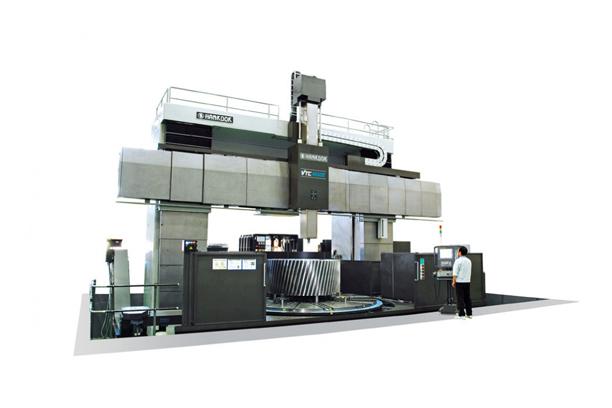

VTB(VTC) 4050E/5060E

• Maximum 6,000㎜ turning capacity
• Massive one-piece cast iron bed, column and cross-rail
• Fully controlled C-axis and rotary spindle

- Max. turning diameter 5,000/6,000㎜
- Max. turning height 2,500/3,000/3,500/4,000㎜
- Max. load on table 50,000/60,000/100,000㎏
- Table diameter 4,000/5,000㎜
- Table speeds 1~60/1~50rpm
- Table drive motor AC 120㎾, 155㎾
- VTC type AC 37/45㎾
- VTC type 30~3,000rpm
- VTC type 0.001deg.
