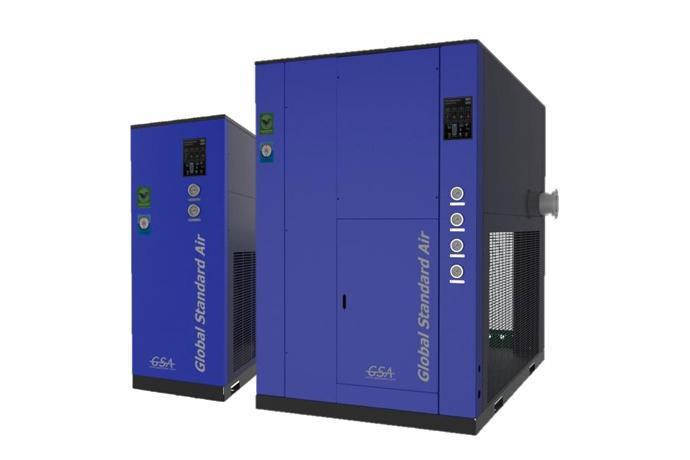

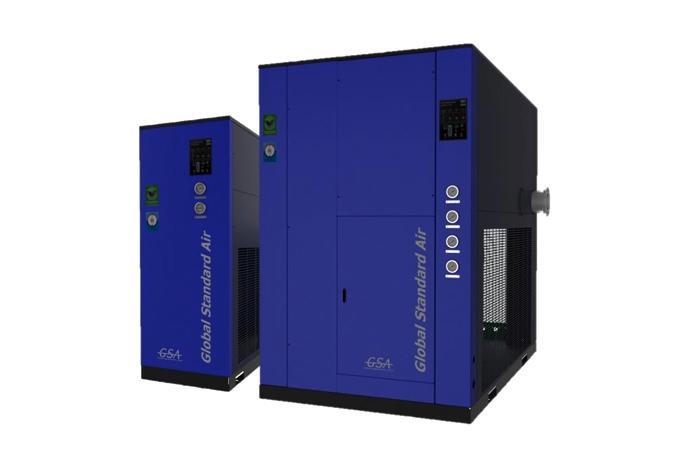

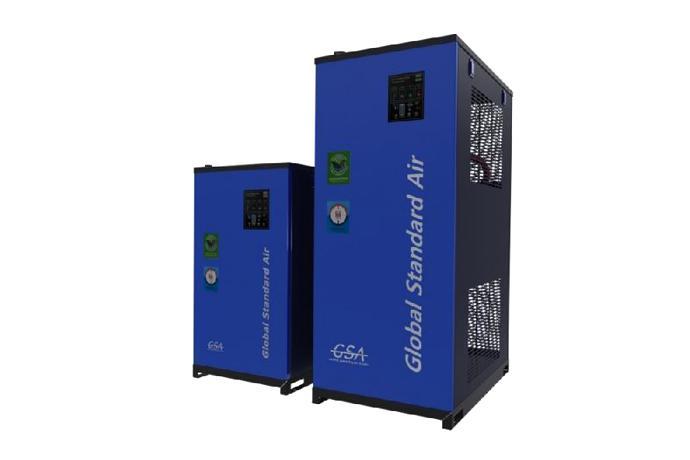

1. Heat exchanger in aluminum
- Lighter weight
- Dew point is excellent with excellent heat transmission and larger heat exchanging area
- The possibility of internal crack is low with one matarial heat exchanger.
- Corrosion resistant with oxidization film
2. Indicating correct dew point with detecting the temperature of compressed air instead of refrigerant
3. High quality PCB controller
4. Max. operating pressure : 14bar
5. You can open and close conveniently the canopy with the one-tough locker.
6. Adopting timer-controlled drain valve with Viton O-ring
7. Upon request for customer-engineered products
- Adding control devices and output signa
- R404, R407 refrigerant
- Various electric specification
Specification
Inlet pressure 7 kg/cm2
Max. inlet temperature 40℃
Design pressure 14 kg/cm2
Ambient temperature 2℃ ~ 40℃
Differential pressure 0.2 kg/cm2
Pressure Dew Point 2℃ ~ 8℃
Model |
Flow Rate |
Power supply | Refrigerant compressor |
Connection |
Dimension [mm] |
Weight |
||
HYD- |
[Nm³/min] |
V-Ph-Hz | [HP] |
Width |
Length |
Height |
[kg] |
|
5N |
0.65 |
220-1-60 | 1/4 |
G 1/2" |
358 |
468 |
712 |
36 |
7N |
0.98 |
1/4 |
G 1/2" |
358 |
468 |
712 |
36 |
|
10N |
1.40 |
1/3 |
G 1/2" |
358 |
468 |
712 |
36 |
|
15N |
1.90 |
1/3 |
G 1" |
428 |
508 |
709
|
45 |
|
20N |
2.65 |
1/3 |
G 1" |
428 |
508 |
709 |
45 |
|
30N |
3.90 |
3/4 |
G 1" |
358 |
658 |
864 |
66 |
|
35N |
4.70 |
3/4 |
G 1" |
358 |
658 |
864 |
66 |
|
50N |
6.70 |
1 |
G 1-1/2" |
408 |
708 |
952 |
89 |
|
75N |
10.50 |
11/2 |
G 2" |
458 |
798 |
1045 |
120 |
|
100N |
14.20 |
2 |
G 2" |
458 |
858 |
1145 |
126 |
|
130N |
18.0 |
3 |
G 2-1/2" |
560 |
1010 |
1330 |
167 |
|
150N |
21 |
3 |
G 2-1/2" |
560 |
1010 |
1330 |
172 |
|
170N | 24 | 4 | FLG 65A | 690 | 1210 | 1323 | 230 | |
200N | 30 | 4 | FLG 80A | 690 | 1210 | 1323 | 250 | |
250N | 39 | 5 | FLG 80A | 800 | 1300 | 1400 | 350 | |
300N | 47 | 5 | FLG 100A | 800 | 1300 | 1400 | 400 | |
400N | 56 | 10 | FLG 100A | 1200 | 1500 | 1700 | 650 | |
500N | 66 | 15 | FLG 150A | 1200 | 1850 | 1700 | 750 | |
600N | 85 | 15 | FLG 150A | 1200 | 1850 | 1700 | 850 |
NOTE
1. Refrigerant R-134, R-22, R-404, R-407 and R410 available.
(R-134 is used for HYD-20N and smaller model, R-404 or R-407 is used for the others)
2. The other electric power products are available.
(Single phase on models HYD-75N and below. The above is 3 phase.)
3. Above flow rate is based on 60Hz.
4. Bigger model than the above is available.
5. The specification can be changed without notice to improve the products.
