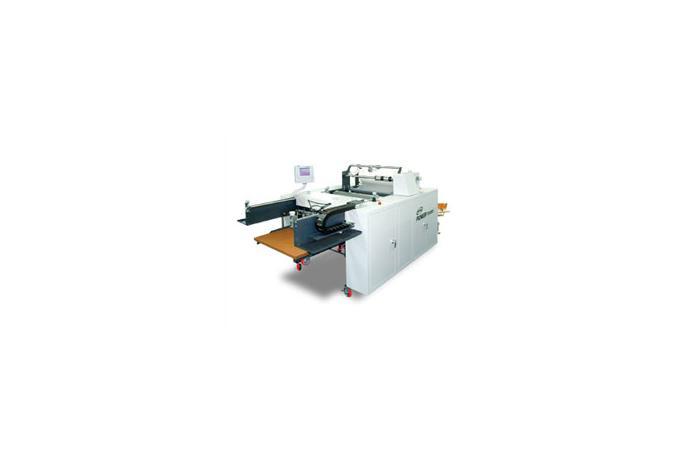

Quality high speed laminator for digital printing on-demand
- Heavy duty induction heating roller for high speed lamination lamination(40m/min) and for accurate temperature control (±1℃)
- Hifgh speed stream feeder (6,000sheet/hr)
- Film slitting knife and rewinder
- Film rewinder for fusing
- Nicking knife for perfect cutting(standard)
- Selective cutting condition (Rotary or nicking knife)
- High pressure at laminating roller with pneumatic cylinder for quality lamination
- Accurate temperature control with roller surface temp. sensor
- Perfect bursting with pneumatic cylinder
Basic Patterns of embossing rollers
- Environment-friendly "Thermalami" system
- Perfect lamination for whole kinds of Substrates without bubble.
- Easy to convert for embossing lamination mode
- 6 Patterns of embossing rollers
- Space effective design
- Equipped the roller cooling system for perfect embossing effect
- Film tension adjustment device and decurling device are equipped
Laminating for Digital Printing On-demand Bookbinding & Off-Set Print
Max. Laminating Speed : 50m/min
Feeding Speed : 6,000sheets/hr
Max. Paper Size : (W) 700mm x (L) 1,000mm
[Patent Specification]
1.The method of forming embossing pattern by heating press mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
3.Device for holding a film roll in a laminator
Special Features
▶ Able to supply the most suitable laminating solution for all kinds of Digital printing system.
▶ Electro-Magnetic Induction Heating Roller with Accurate Temp. Control for Quality Lamination
▶ Suitable for massive operation (Laminating Speed : Max. 50m/min)
▶ Full automatic laminating system (Feeding, Laminating, Cutting)
▶ Small and Medium volume work available by jogging table
▶ Full automatic stacker available (Option)
▶ Most Reliable & Durable by PLC and servo control system
Jogging Table (Option)
Automatically Jogs the finished output for easy pallet loading
▶ Model : Jogging Table-1200
▶ Out-put Height : 130mm
▶ Paper Size(MAX) : 800x1200mm
▶ Dimensions(WxLxH) : 870 x 1,290 x 590mm
▶ Power Requirements : AC 220-240V, 50-60Hz
High-Speed commercial laminator as a solid-build finishing solution for digital & offset print-outs with advanced technology.
Laminating for Diverse Surface Finish or Coated Paper
Laminating Speed : 70m/min
Feeding & Bursting Speed :7,500 sheets/hr
MAX Paper Size : 800(W)mm x 1,100(L)mm
[Patent Specification]
1.The method of forming embossing pattern by heating press mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶Available Lamination with or witihout Embossing
▶Perfect Embossing Effects during High Speed Lamination
▶Overlay Embossing Possible with One time job
▶Suitable for massive operation (Laminating Speed : Max. 70m/min)
▶All electronic functions are controlled by a LS PLC, Servo motor and Driver
▶After Lamination, the laminated paper is stacked automatically
Automatic Stacking Table
▶ A Stacking and palletized accessory for perfect alignment of finished output eliminates the need for hand jogging and pallet loading
* Model : Automatic Stacking Table-8000
* Out-put Height : 750mm
* Paper Size(MAX) : 800x1,100mm
* Dimensions(WxLxH) : 1,420 x 1,250 x 1,230mm
* Power Requirements : AC 220-240V, 50-60Hz
Laminating for High Speed Printing, Large Poster and Box
Laminating Speed : 70m/min
Feeding & Bursting Speed : 7,5000 sheets/hr
MAX Paper Size : 1,100(W)mm x 1,200(L) mm
[Patent Specification]
1.The method of forming embossing pattern by heating press
mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶ Reduce work time considerably, as it is possible to laminate 4x6 paper in width
▶ Suitable for manufacturing process of package box
▶ High speed system equipped with integrated feeder and separator
▶ All the electronic functions are controlled by a Siemens PLC,Servo motor and Driver
▶ After Lamination, the laminated paper is stacked automatically (Option)
Automatic Stacking Table
▶ A Stacking and palletized accessory for perfect alignment of finished output eliminates the need for hand jogging and pallet loading
* Model : Automatic Stacking Table-11000
* Out-put Height : 750mm
* Paper Size(MAX) : 1,100mm x 1,200mm
* Power Requirements : AC 220-240V, 50-60Hz
