Description


GMP Industrial Machinery

Special Features

GMP Industrial Machinery  1

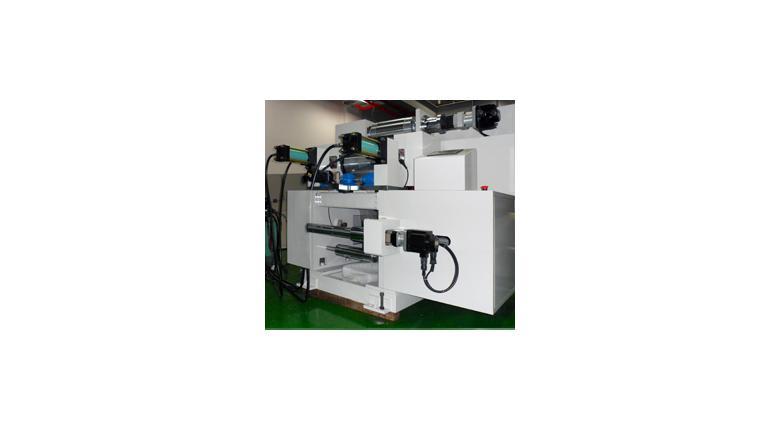

▶ Un-winder
The unwinding part controls BACK TENSION by AC SERVO MOTOR calculating the change amount of unwinding tension. SHAFTLESS TYPE with FRAM movement while CORE CHUCKING is fixed by air pressing.

▶ Slitting Unit
-Slitting Type: combined use of RAZOR and SHEAR KNIFE
-Operating Type: Interlocking Flat Belt and Transport Roll

▶ Re-winder
An independent sensor and winding system driven by Sectional Drive type of AC serve motors (Shaft-less Type)

▶ Touch Roll Unit
-Lay-on touch type - Automatic surface pressure control system controls the pressure of the cylinder depending on the value of surface pressure control through a converter

▶ Control Panel
- Main Panel: machine-mounted
- Control Power : AC 220V x 60Hz

GMP Industrial Machinery  2


GMP Industrial Machinery  3

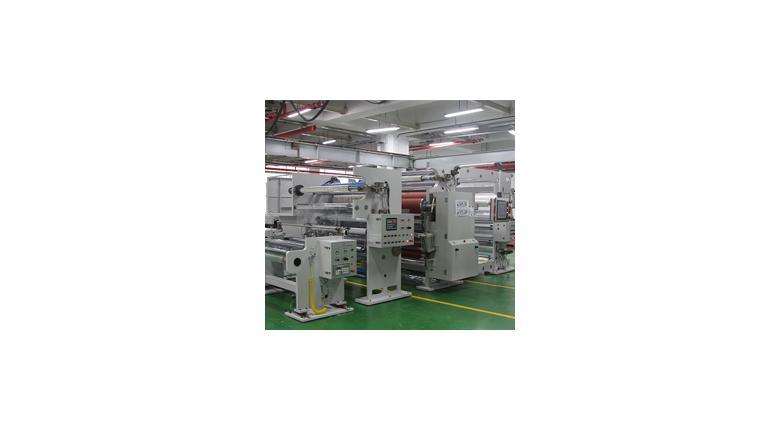

▶ Suitable for all-purpose laminating
▶ Especially, available for Glue-less Laminating that can not use adhesive layer.
▶ Use to laminate films of different materials in between

Special Features

GMP Industrial Machinery  4

▶ Able to laminate different films without adhesive layer in between by the Know-how & experience of GMP
▶ Temperature control within +/-1 ° C applying Electro-Magnetic Induction Heating System
▶ Ultra heat resistant rubber rollers manufactured by GMP are available to use continuously up to 170 ° C
▶ Easily control the thickness of substrates with precise roller gap adjustment device

GMP Industrial Machinery  5


GMP Industrial Machinery  6

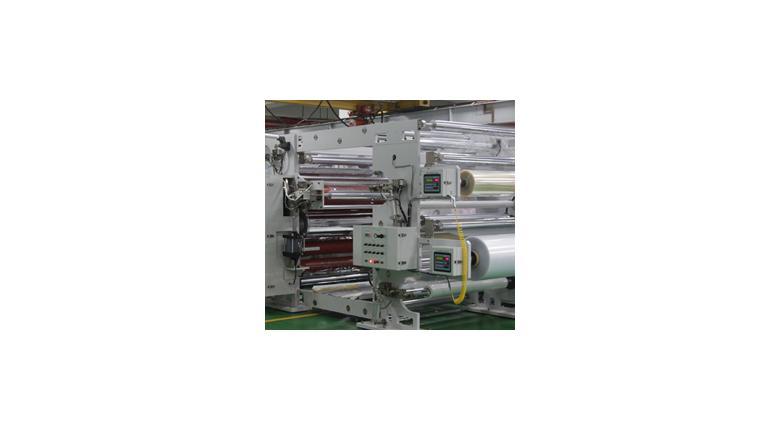

▶ Use for basic film embossing job
▶ Use for process needing adhesion job between different films and embossing job in parallel
▶ Use for precise heating treatment to enhance the characteristics of films

Special Features

GMP Industrial Machinery  7

▶ Control temperature within +/-1℃ applying Electro-Magnetic Induction Heating System
▶ Ultra heat resistant rubber rollers manufactured by GMP are available to use continuously up to 170℃
▶ Easily control the thickness of substrates with the precise roller gap adjustment device
▶ Corona treatment device for enhancing adhesive strength is installed
▶ Web Cleaner for particle management of optical films is installed

GMP Industrial Machinery  8


GMP Industrial Machinery  9

▶ Use for High pressure, high-precision thermal imprinting
▶ Use for High pressure laminating

Special Features

GMP Industrial Machinery  10

▶ Up to 6 tons of high pressure Imprinting and laminating device
▶ Precisely control the pressure by using Servo-controlled hydraulic pressure device
▶ Precisely control the thickness of substrate by manufacturing tolerance within 3㎛
▶ Available to use various films by diversely implementing Web Pass of basic films

GMP Industrial Machinery  11


GMP Industrial Machinery  12

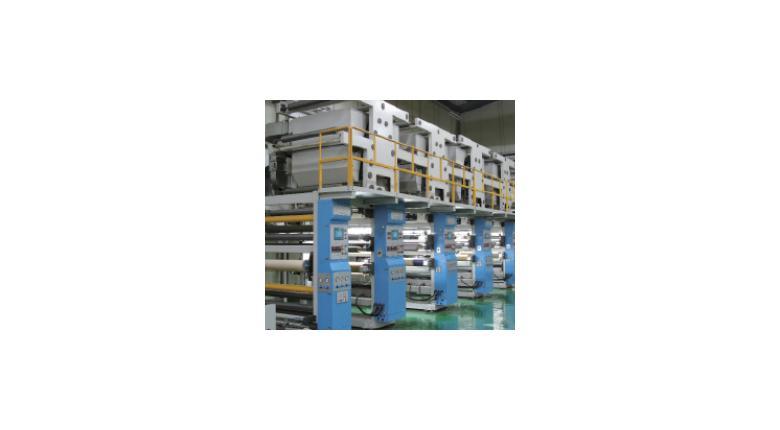

▶ Roll to Roll continuous production type high-precision printer for Printed Electronics
▶ RFID Antenna, Sensor, Chip-less Circuit

Special Features

GMP Industrial Machinery  13

▶ Retain conductivity in thin film by Gravure Offset printing method
▶ Influence of printing thickness is less in overlay printing due to printing ability under low pressure
▶ Best solution in printed electronics by precise overlay printing
▶ Conductive ink printing and insulating ink printing are available with single pass-multi print
▶ Excellent Drying efficiency by applying Zet nozzle on dry chamber

GMP Industrial Machinery  14
