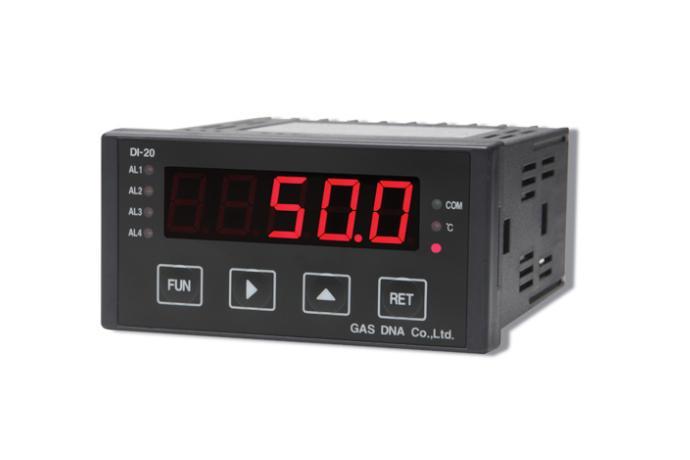

Multi-input indicator

Model Name

DI-20

Series

Infrared Thermometer

View AllView All Series

Data

DI-20

Manufacturer information

GASDNA

Infrared thermometer manufacturer, .Gas measuring device, Gas detector, Smoke detector, Air quality measuring device and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

GASDNA

Product Type

Machine

Brand

SKU

55040

Product Name

Multi-input indicator

Model Name

DI-20

Size

Weight

Product Details

DI-20 has built-in high performance A/D converter & micro-processor which enable multi input signals, output signal transmission, communication, and alarm

[ Specification ]

Input signal: you can choose one out of below table.


Input signal group	Type	Input signal range	Display range	Symbol
TC	B (PR30%)	-	0~1800℃	Tc-B
	R (PR30%)		0~1750℃	Tc-R
	S (PR10%)		0~1750℃	Tc-S
	K (CA)		-200~1350℃	Tc-K
	E (CRC)		-200~800℃	Tc-E
	J (IC)		-200~800℃	Tc-J
	T (CC)		-200~400℃	Tc-T
	N		0~1350℃	Tc-N
RTD	DIN PT100Ω		-200~600℃	DPT1
	DIN PT(0.1)		-199.9~600.0℃	DPT2
	JIS PT100Ω		-200~600℃	JPT
DC	mV	±100.0	-1999~9999	MV
	V	±10.0 0~30V	-1999~9999	V
	mA	±20.0	-1999~9999	MA

*For input of mA, you need to connect external resistor for 250Ω/±0.05%/25ppm.


Accuracy	control ±0.2%, transmission output ±0.25% (full scale)
Cycle of measurement and display	200ms (TC, RTD) and 100ms (mV, V, mA)
Input resistance	Volt – 400KΩ, mA - 250Ω, others - 1MΩ
Signal resistance	PT - 30Ω/Line, others - below 300Ω
C.M.R.R	over 140dB, N.M.R.R: over 50dB
Alarm	2 or 4 channels (option) - Contact capacity: AC 250V/5A, DC30V/5A - Contact: 1b(N.O)
Communication	RS232, RS422, RS485 (option) with built-in terminal resistor
Output signalEnvironment	DC4-20mA / 600Ω (Max) (option) with insulation of input and output
Environment	operating -5℃~60℃ / 10%~90% storing -20℃~70℃ / 5%~95%
Power consumption	3.5W
Power voltage	AC85V~264V
Insulation resistance	FG/INPUT, FG/PW, PW/IN(over 100MΩ/500VDC)
Weight	about 350g
Size(mm)	96(W)X48(H)X100(D)
Mounting	PLC multi or single mounting
