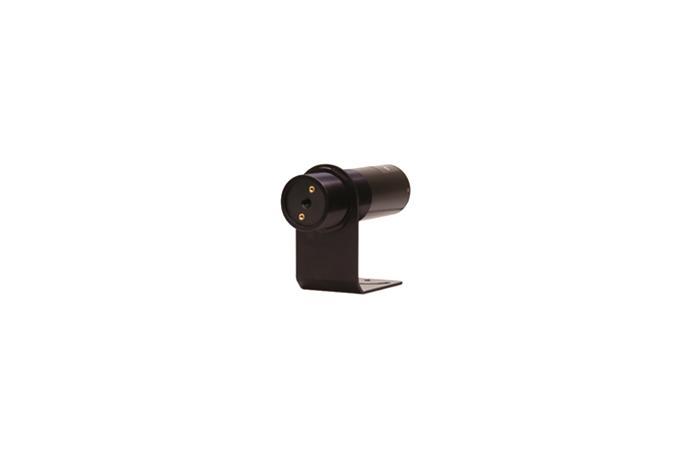

6-IRman non-contact infrared thermometer measures the amount of infrared energy emitted from object and transmits standard current output signal (4~20mA) or RS-485 communication output signal. Also, it transmits relay contacts for alarm signal.
As 6-IRman is composed of infrared sensor head & LCD display with keypad, you can check the temperature value in real-time at the installation site.
You can measure the temperature ranged from -20 to max. 600℃ with adjustable measurable temperature range. Adapting optical lens offers improved measuring accuracy and 10:1 Field of View offers accurate measurement for long distance object. Emissive rate can be adjusted 0.10 ~ 0.99.
[ Applications ]
Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.
[ Specification ]
| Temperature Range | -20~600℃ |
| Device | Thermopile |
| Accuracy | ±1%/F.S |
| Repeatability | ±1% of Rdg |
| Field of View(D:S) | 10:1 |
| Optical spectrum wave | 8~14㎛ |
| Responsive Time | 500msec or below |
| Emissive rate | 0.10~0.99 |
| Analog Output | 4~20mA, 1~5V(option) |
| Communication output signal | RS-485 communication signal |
| Relay Output | 2 step- Relay Contact (AL1/AL2) |
| Power | DC 12~24V(Max 100mA) |
| Ambient temperature(no water cooling) | 0~70℃ |
| Temperature Resolution | 0.1℃ |
| Operating Relative Humidity | 5~90% |
| Operating Ambient Temperature | -30~85℃ |
| Waterproof | IP65,NEMA 4 |
| Dimensions | Signal Process Module: 98 × 64 Sensor Head: 41 × Ø16 |
| Casing material | SUS |
| Weight | 285g |
| Cable length | 3m, other |
[ Code Number 6-IRman-□-□-□ ]
| Model | Description |
| 6-IRMAN | |
| Code A | Temperature Range |
| 1 | -20~600℃ |
| 2 | 0~600℃ |
| Z | Other |
| Code B | Output |
| M | 0~20mA |
| N | 4~20mA |
| Z | Other |
| Code C | Cable Length |
| 1 | 3m Cable |
| Z | Other |
[OPTICAL FIELD OF VIEW (D:S = 10:1)]
