GASDNA

GASDNA

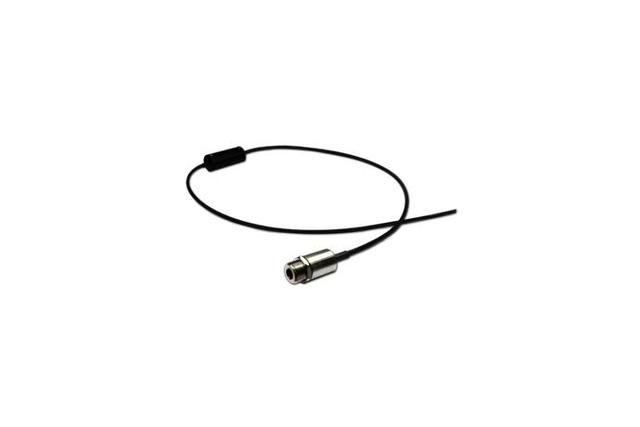

Non-Contact small size Fixed Infrared Thermometer

Model

Series

Infrared Thermometer


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

IR-22 non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA) and RS-485 communication signal output.
 It can measure from -60 ℃ to maximum 380℃ and RS-485 communication enables to store data in computer.
 IR-22 has a high precision by adopting optical lens which can enable to measure target exactly at a long distance through its 10:1 D:S (Distance to Spot).


[ Applications ]

 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.




[ Specification ]


Measurement Range -60℃ ~380℃
Device Thermopile
Accuracy ±1% / full scale
Repeatability ±1% of reading
Distance : Spot 10:1
Optical spectrum wave 8~14㎛
Responsive Time 0.1 sec or below
Emissivity 0.95 fixed
((Changeable when using PC software program)
Analog Output 4~20mA
Communication RS-485
Power DC 12~24V(Max 50mA)
Ambient temperature -20~70℃
Temperature Resolution 0.1℃
Operating Relative Humidity 5~90%
Storage temperature -30~85℃
Dimension Ø16 ×70.5(L)
Housing material SUS
Weight 75g
Cable lenght 1m (standard), other(option)




[ Code Number IR-Compact-□□□ ]


Model Description
IR-22
Code A Temperature Range
1 -60~380℃
2 0~200℃
Z Other
Code B Output
M DC 0~20mA
N DC 4~20mA
Z Other
Code C Cable Length
1 1m Cable
Z Other (option)




[Optical Field of View ]

GASDNA Non-Contact small size Fixed Infrared Thermometer IR-22

Download

IR-22 Spec
