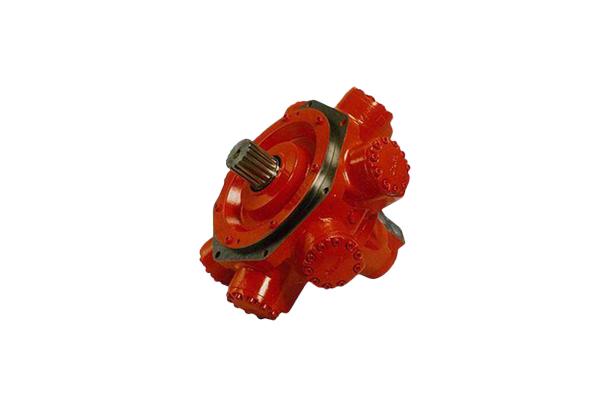

Radial piston motor

Model Name

HMC

Series

Industrial Machinery Division

Data

Manufacturer information

Hydraulic Equipment Manufacturer, Main Pump, Swing Motor, Travel Device, Electro-Hydraulic Steering Gear and more

Inquiry

Problem with product info?

Update request

Manufacturer

FLUTEK

Product Type

Machine

Brand

SKU

142732

Product Name

Radial piston motor

Model Name

HMC, HMB

Size

Weight

Product Details

Features	Benefits
Fixed/Variable motor	Broad coverage to suit specific application requirements
Long life	Easy to handle and repair due to simple structure
High efficiency	High volume and mechanical efficiency
CHP horsepower control	Continuous horsepower control possible by CHP valve

HMB (Fixed displacement, 1-speed)

MODEL		HMB							HM (HD)B	HM (HD)B	HMB	HM (HD)B	HMB	HM (HD)B	HM (HD)B	HM (HD)B	HMB
Size		010	030	030 (FM3)	045	060	080	100	125	150	150 (FM3)	200	200 (FM3)	270	325	400	500
Displacement [cm³]		188	442	492	700	983	1,344	1,639	2,050	2,470	2,470	3,087	3,087	4,310	5,310	6,800	8,000
Pressure [MPa]	Rated	20.7			25.0												19.0
Pressure [MPa]	Max.	24.1			29.3												22.7
Speed [min^-1]	Rated	500	450	450	400	300	300	250	220	220	168	135	135	125	100	120	100
Power[kW]		25	42	52	60	80	100	110	100	115	115	130	130	140	140	190	170
Application		Crushers, Plastic machinery & die casting, Waste treatment, Tunnel boring machines, Cargo vessels, Offshore vessels etc

HMC (Variable displacement, 2-speed)

MODEL		HMC
Size		030	045	080(FM3)	080(FM4)	125(FM3)	125(FM4)	200(FM3)	200(FM4)	270	325
Displacement [cm³]	100%	492	737	1,600	1,600	2,048	2,048	3,087	3,087	4,588	5,326
Displacement [cm³]	50%	246	410	819	819	983	983	1,475	1,475	2,294	2,622
Pressure[MPa]	Rated	20.7					25.0
Pressure[MPa]	Max.	24.1					27.5
Speed [min^-1]	q max	450	450	270	365	215	300	175	230	150	130
	0.5q max	600	600	500	515	450	490	300	400	275	230
	q=0	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Power[kW]		60	99	138	135	135	135	174	174	189	189
Application		Crushers, Plastic machinery & die casting, Waste treatment, Tunnel boring machines, Cargo vessels, Offshore vessels etc
