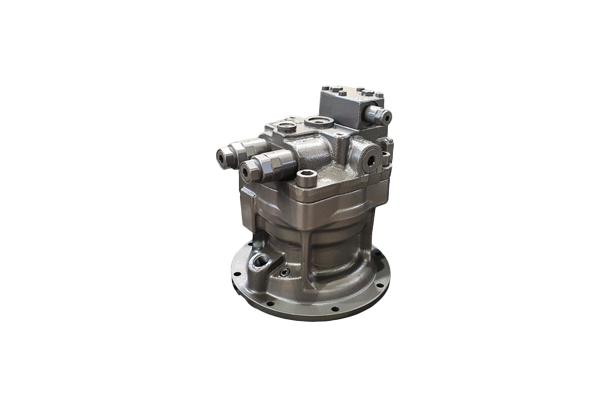

product Image
Swing Motor
Model Name
M5X Series
Series
Hydraulic Machinery Division
View All
Data
-
Manufacturer information
provider logo
FLUTEK

Hydraulic Equipment Manufacturer, Main Pump, Swing Motor, Travel Device, Electro-Hydraulic Steering Gear and more

Problem with product info?
Update request
Manufacturer
FLUTEK
Product Type
Machine
Brand
-
SKU
142724
Product Name
Swing Motor
Model Name
M5X Series
Size
-
Weight
-
Product Details

This is a high-efficiency, high-reliability, low-noise swash plate axial piston motor for construction machinery.

Features Benefits
compact design Achieving compactness by properly arranging the piston motor unit, parking brake,
and accessory valves
Structure optimized for turning By designing the large mounting flange of the hydraulic motor, it can be directly
connected to the ring gear of the turning reducer, contributing to cost reduction.
Built-in necessary functions Realization of built-in relief valves, makeup valves, etc.



Specification

Series M5X Series
Size 80 130 180 250
Max. displacement [cm3] 79.0 129.2 180.1 250.1
Pressure[MPa] rated. 32.4
peak. 39.2
Speed [min-1] 2,200 1,850 1,680 1,520
Torque[N·m] 415 666 929 1,313
Mass[kg] 38 47 61 100
Application [ton] 12~18 22~30 34~52 70~

※ M2X Series extinction
