Description
Descriptions

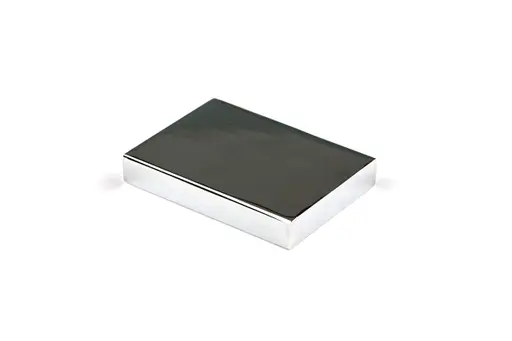

Also called flat bar, it is structural steel produced in a rectangular shape with a thickness of semi-finished billet or bloom. It is sold in various thicknesses, widths, and lengths of supply standards, and is used for ship steel, building exteriors, valves, and anchor bolts for fixing boiler gauge marble.
Dimensions and Sectional Properties
| Standard Sectional Dimension (mm) |
Sectional Area (cm2) |
Unit Weight (kg/m) |
|
|---|---|---|---|
| B | t | ||
| Flat Bar 150 | 12T | 18.00 | 14.13 |
| 14T | 21.00 | 16.49 | |
| 15T | 22.50 | 17.66 | |
| 16T | 24.00 | 18.84 | |
| 18T | 27.00 | 21.19 | |
| 19T | 28.50 | 22.37 | |
| 20T | 30.00 | 23.55 | |
| 22T | 33.00 | 25.91 | |
| 24T | 36.00 | 28.26 | |
| 26T | 39.00 | 30.62 | |
| Flat Bar 175 | 20T | 35.00 | 27.48 |
| 22T | 38.50 | 30.22 | |
| 25T | 43.75 | 34.34 | |
| Flat Bar 200 | 16T | 32.00 | 25.12 |
| 20T | 40.00 | 31.40 | |
| 25T | 50.00 | 39.25 | |
| 27T | 54.00 | 42.39 | |
| 30T | 60.00 | 47.10 | |
| Flat Bar 250 | 16T | 40.00 | 31.40 |
| 20T | 50.00 | 39.25 | |
| Flat Bar 300 | 20T | 60.00 | 47.10 |
| 25T | 75.00 | 58.88 | |
| 30T | 90.00 | 70.65 | |
