FINE BESTEEL
FINE BESTEEL
Description
Descriptions

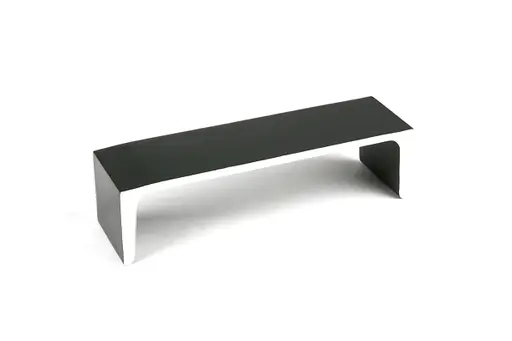

It trends to receive influence of twist because it is asymmetry as section shape having two flanges toward only one way in web. But because it is easily assembled and connected, it is used for trust, brace, strut, bending material, etc.
Dimensions and Sectional Properties
| Standard Sectional Dimension (mm) |
Unit Weight (kg/m) |
Sectional Area (cm2) |
Modulus of Section (cm3) |
|||
|---|---|---|---|---|---|---|
| H x B | t1 | t2 | Zx | Zy | ||
| 75x40 | 5 | 6 | 6.92 | 8.818 | 20.2 | 4.54 |
| 100x50 | 5 | 7.5 | 9.36 | 11.92 | 37.8 | 7.82 |
| 125x65 | 6 | 8 | 13.4 | 17.11 | 68 | 14.4 |
| 150x75 | 6.5 | 10 | 18.6 | 23.71 | 115 | 23.6 |
| 150x75 | 9 | 12.5 | 24 | 30.59 | 140 | 28.3 |
| 200x80 | 7.5 | 11 | 24.6 | 31.33 | 195 | 30.8 |
| 200x90 | 8 | 13.5 | 30.3 | 38.65 | 249 | 45.9 |
| 250x90 | 9 | 13 | 34.6 | 44.07 | 335 | 46.9 |
| 250x90 | 11 | 14.5 | 40.2 | 51.17 | 375 | 51.7 |
| 300x90 | 9 | 13 | 38.1 | 48.57 | 429 | 48 |
| 300x90 | 10 | 16.5 | 43.8 | 55.74 | 494 | 56 |
| 300x90 | 12 | 16 | 48.6 | 61.94 | 525 | 57.9 |
| 380x100 | 10.5 | 16 | 54.5 | 69.39 | 762 | 73.3 |
| 380x100 | 13 | 16.5 | 62 | 78.96 | 822 | 75.8 |
| 380x100 | 13 | 11 | 67.3 | 85.71 | 924 | 89.5 |
