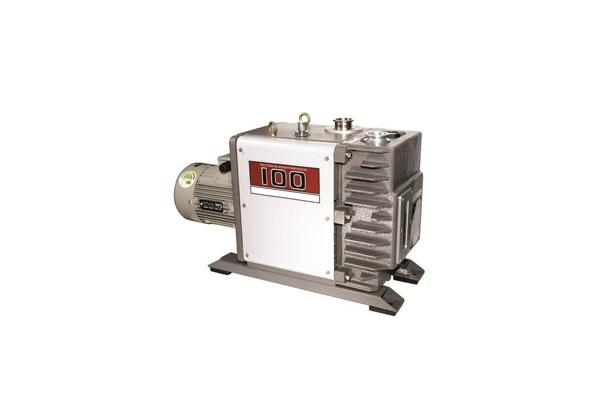

Oil Type Vacuum Pump (MVO Series)
Model Name
MVO-064
Series
Oil Type Vacuum Pump
Data
-
Manufacturer information
provider logo
DOOIL

Vacuum Pump manufacturer, Oil Type Vacuum Pump, Dry Vacuum Pump, Sealed Vacuum Pump, Medical Suction Pump and more

Problem with product info?
Update request
Manufacturer
DOOIL
Product Type
Machine
Brand
-
SKU
129734
Product Name
Oil Type Vacuum Pump (MVO Series)
Model Name
MVO-064, MOV-101
Size
-
Weight
-
Product Details

MVO - 064/101

  - 체크밸브 내장

  - 배기필터 내장

  - 저소음 및 저진동

  - 공냉식




Specifications

기술자료

MVO-064

MVO-101

배기량

50HZ

㎥/h

63

100

60HZ

76

120

최대압력

mbar

0.5

0.5

전격전압/삼상

50Hz

V

220/380

220/380

60Hz

220/380

220/380

모터출력/삼상

50Hz

kW

2.2

3

60Hz

2.55

3.45

모터출력/단상

kW

-

-

모터회전수

50Hz

min-¹

1420

1420

60Hz

1700

1700

소음

dB(A)

68

70

수증기최대허용치

mbar

40

40

수증기량

ℓ/h

1.8

2.8

운전온도(주변)

40

40

오일량

liter

2

2

제품무게

50Hz

kg

64

75

60Hz






Dimension


A

냉각공기흡입

B

냉각공기배기

C

흡입구

PT 1 1/4"

D

배기구

PT 1 1/4"

E

주유구

F

오일필터

G

방진구

3-M8 (DP 10)

H

유면계

K

배유구


제품명

a

b

c

d

e

f

g

h

i

j

k

l

MVO-064

672

152

324

281

238

298

292

410

173

10

MVO-101

722

177

349

281

238

298

292

410

173

10







Performance Curve
