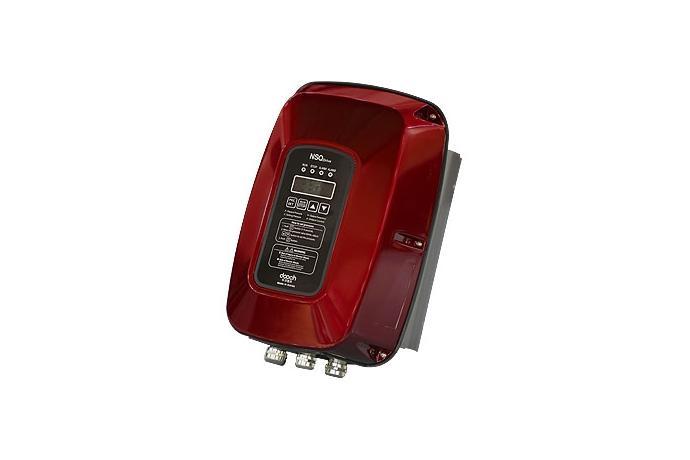

Product Name V.F.D.
Model NSQ-DRIVE
Series VFD & Controllers
Catalog ALL-IN-ONE INTELLIGENT PUMP CONTROLLER.pdf
Product Description


· Motor Power   0.75~22kW (1~30HP)

· Available Power   1PH 200~230V(1~3HP), 3PH 380~440V(1~30HP)

· IP Class   IP55

· Ambient Temperature   -10~+40℃

· External Comm.   RS-485, Internet



Description

NSQ-DRIVES are pump specific variable frequency drive that manages pump performance to match a wide range of system conditions and requirements.

Adjusting the pump speed is the most efficient means of controlling pump flow and reducing the energy consumption As the drives are self-cooling and motor-independent structure, it can be mounted directly on the motor or on the wall.



Application

Pressure boosting systems

In-line circulation pump systems

For all pumps system requires the pressure/differential pressure control



Features

Energy Savings up to 70%

Multi-pump control capacity of up to 6 pumps

Hydraulic control functions included

Electrical and hydraulic pump protections

Automatic recovery after power failure

Easy retrofitting on existing pump system

Flexible installation either directly on a standard I.E.C. motors or on walls
