인버터펌프
Model Name
NSQ-2DHF Series
Series
Small Size Booster System
Data
BOOSTER PUMP SYSTEM
Manufacturer information
provider logo
DOOCH PUMPBooster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more
Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
60930
Product Name
인버터펌프
Model Name
NSQ-2DHF Series
Size
-
Weight
-
Product Details

· 최대유량   56㎥/h

· 최대양정   79m

· 펌프동력   2PUMP - 삼상: 0.75~10HP / 단상 3HP 3PUMP- 삼상 : 0.75~10HP / 단상 0.75~3HP

· 전원사양   삼상 : 380V~440V 단상 : 200~230V



상세설명

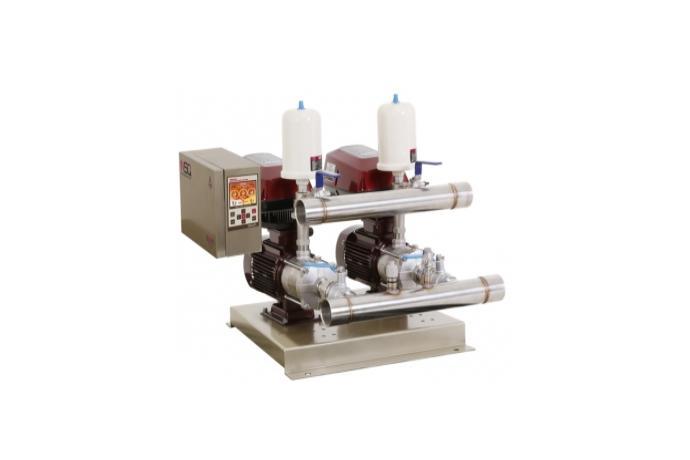

스테인레스 횡형 다단펌프(DHF Series)에 두크 자체 개발의 펌프 전용 인버터(NSQ-Drive)를 장착한 전자제어 펌프 입니다.

개별 인버터형 부스터 펌프 시스템은 펌프마다 각각의 펌프전용 인버터가 부착되어 모든 펌프를 독립적으로 제어합니다.

모든 펌프를 인버터 제어함으로 정밀한 급수압력제어가 가능하며, 판넬 및 압력탱크의 크기를 소형화하여 적은 설치 면적으로 공간활용을 극대화 할 수 있습니다.

사용 급수량의 변화에 따라 펌프의 속도를 변화시켜 일정한 압력을 유지하고 소비동력을 크게 절감하는 절전형 전자제어 펌프(E-PUMP)이며, 주로 건물의 급수 가압용으로 사용 할 수 있습니다.



용도

· 가압용, 급수용(고층 저수압 지역 가압)

· 세척시스템

· 냉각장치

· 공조 시스템

· 스프링클러

· 산업용



주요특징

· 두크 자체개발의 펌프전용 인버터 NSQ-Drive 장착

· 모든 펌프가 개별 인버터로 회전수 운전

· 개별 인버터에 의한 정밀한 급수압력제어

· 부하변동에 따른 펌프성능 최적화로 전력절감

· 소프트 운전으로 저소음 및 수충격 방지

· 컴팩트한 구조로 설치가 쉽고 사용자 조작이 간편함

· 펌프전용 인터넷 모뎀(IM-2000) 장착으로 인터넷 제어 가능 (OPTION)

· 펌프간 상호 연동 및 백업운전으로 높은 시스템 안전성

    - 특정 인버터 고장시에도 정상운전이 가능

· 인버터 손실량 추정을 이용한 교대운전으로 장비수명 연장

    - 장비(인버터, 펌프)의 실제가동율을 반영한 균등운전

    - 인버터 콘덴서, 펌프 씰, 베어링등의 균일한 마모로 내구성 증가
