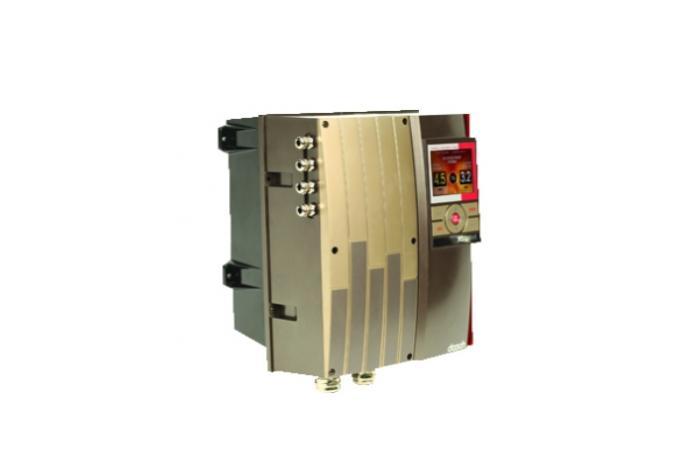

Product Name V.F.D.
Series VFD & Controllers
Catalog V.F.D. XQ-Drive.pdf
Product Description

· Motor Power   0.75~22kW(1~30HP)

· Input Power   3PH 380~440V

· Output Power   3PH 380~440V

· IP Class   IP55

· Ambient Temperature   -10~40℃

· External Comm.   RS-485, Internet


XQ-DRIVES are pump specific variable frequency drive that manages pump performance to match a wide range of system conditions and requirements.

Adjusting the pump speed is the most efficient means of controlling pump flow and reducing the energy  consumption As the drives are self-cooling and motor independent structure, it can be mounted directly on the motor or on the wall.

XQ DRIVES are equipped with the latest GUI 3.5" color LCD display. A noise filtering EMC filter and DC reactor is also installed within the XQ DRIVES.



Pressure boosting systems

In-line circulation pump systems

For all pumps system requires the pressure/differential pressure control



3.5” LCD Display (Graphical User Interface)

Energy Savings up to 70%

Multi-pump control capacity of up to 6 pumps

Hydraulic control functions included

Electrical and hydraulic pump protections

Automatic recovery after power failure

Easy retrofitting on existing pump system

Flexible installation either directly on a standard I.E.C. motors or on walls

EMC filter and DC reactor built-in -Reduce noise and harmonic distortion
