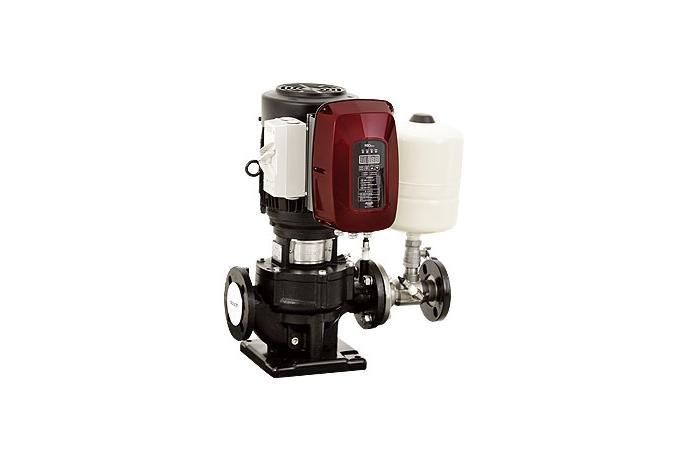

Product Name Individual Inverter In-line Pump
Model NSQ-DP Series
Series In-line Pump
Catalog IN-LINE CIRCULATION PUMP SYSTEM.pdf
Product Description


· MAX. Flow(Q)   480㎥/hr

· MAX. Head(H)   83m

· Motor Power   0.75~22kW (1~30HP)

· Available Power   3PH 380V/50&60Hz, 1PH 220V/50&60Hz




Description

NSQ-DP consist on an electric pump(DP pump) operated by an electronic control system.

Comparing with DP pump, Nsq-Drive and DP pump together with the appropriate sensor is turned into an intelligent, variable speed pumping system.



Application

To control frequent water consumption

To supply water with constant pressure

To communicate pump with external comm.



Features

Energy saving (MAX. 50%)

Optimize the pump operation

Water hammer protection and low noise operation

Compact assembly and installation

Eliminates the need for separate control panel, bypass lines and control valves.

Extend the life of the pump

Easy and convenient installation

User friendly
