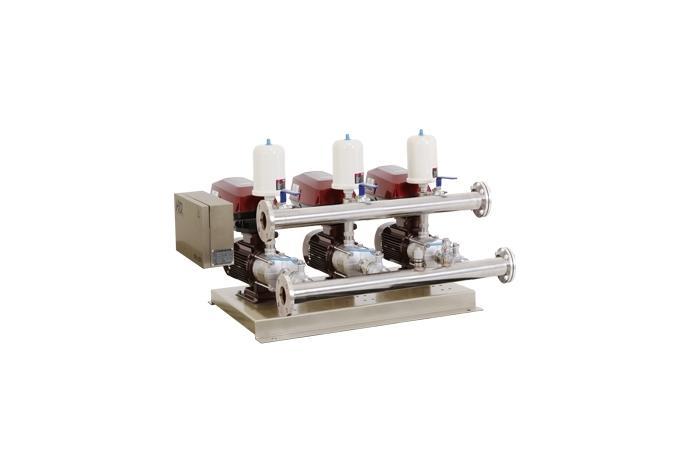

product Image

TOP

Inverter Pump
Model Name
NSQ-2(3)DHF(T) series
Series
Small Size Booster System
Data
BOOSTER PUMP SYSTEM
Manufacturer information
provider logo
DOOCH PUMPBooster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more
Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
60978
Product Name
Inverter Pump
Model Name
NSQ-2(3)DHF(T) series
Size
-
Weight
-
Product Details


· MAX. Flow(Q)   87㎥/h

· MAX. Head(H)   68m

· Motor Power   0.75~7.5HP (3PH 380V~440V / 50&60Hz) / 0.75~3HP (1PH 200V~230V / 50&60Hz)

· Available Power   3PH 380V~440V / 50&60Hz (0.75~7.5HP) / 1PH 200V~230V / 50&60Hz (0.75~3HP)



Description

NSQ-DHF(T) pumps are built on the basis of DHF pumps. The main difference between the DHF and the  NSQ-DHF(T) pump is the variable frequency drive. Enhanced with the NSQ-Drive, NSQ-DHF(T) pump  together with the appropriate sensor is turned into an intelligent, variable speed pumping system. The NSQ- Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow  rate.



 ※ Inlet/Outlet casing material

    - "T" indicates : GCD450

    - Without "T" indicates : Stainless steel



Application

Pressure boosting systems

Domestic water supply systems

Cooling Systems

Air-conditioning systems

Small Industrial water supply systems

Horticultural irrigation system



Features

Each pump is individually controlled by NSQ drive.

High reliability (Multi-master control)

Constant discharge pressure

Reduced tank and panel size

Less wear of the system during operation

Compact assembly and installation

High reliability
