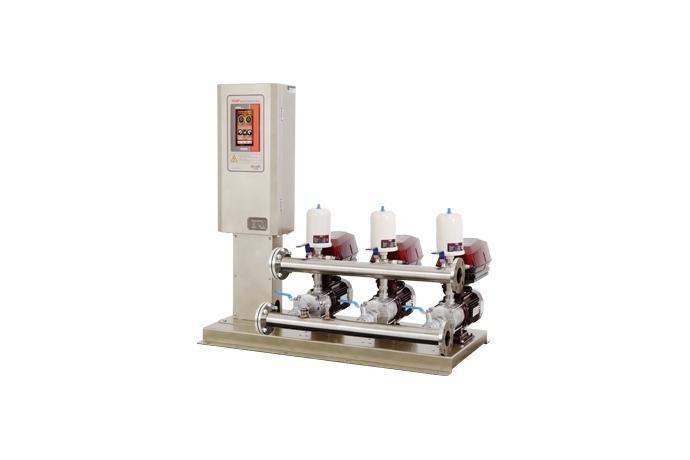

Product Name Inverter Pump
Model NSQP-2(3)DHF(T) Series
Series Small Size Booster System
Catalog BOOSTER PUMP SYSTEM.pdf
Product Description


· MAX. Flow(Q)   87㎥/h

· MAX. Head(H)   68m

· Operat. Pres.   Max. 16 bar

· Motor Power   0.75~7.5HP (3PH 380V~440V / 50&60Hz)

· Available Power   3PH 380V~440V / 50&60Hz (0.75~7.5HP) / 3PH 380V~440V / 50&60Hz (0.75~7.5HP)



Description

NSQP-DHF(T) pumps are built on the basis of DHF pumps. The main difference between the DHF and the  NSQP-DHF(T) pump is the variable frequency drive. Enhanced with the NSQ-Drive, NSQP-DHF(T) pump  together with the appropriate sensor is turned into an intelligent, variable speed pumping system. The NSQ- Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow  rate.

NSQP-DHF(T) is also equipped with the 7" touch screen monitor that is embedded into the panel which  features the latest GUI.

Pressure boosting systems Domestic water supply systems Cooling Systems Air-conditioning systems Small  Industrial water supply systems Horticultural irrigation systems

 ※ Inlet/Outlet casing material

    - "T" indicates : GCD450

    - Without "T" indicates : Stainless steel



Application

Pressure boosting systems

Domestic water supply systems

Cooling Systems

Air-conditioning systems

Small Industrial water supply systems

Horticultural irrigation system



Features

7” color LCD touch monitor

Each pump are individually controlled by NSQ drive.

High reliability (Multi-master control)

Constant discharge pressure

Reduced tank and panel size

Less wear of the system during operation

Compact assembly and installation

High reliability
