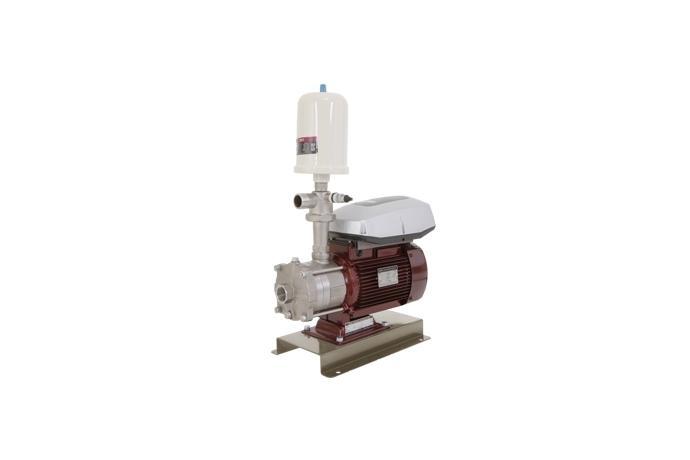

Product Name Individual Inverter Horizontal Pump
Model SQ-DHF(T) Series
Series Horizontal Pump
Catalog BOOSTER PUMP SYSTEM.pdf
Product Description


· MAX. Flow(Q)   29㎥/h

· MAX. Head(H)   55m

· Motor Power   0.55~1.5kW (0.75~2HP)

· Available Power   1PH 200V~230V / 50&60Hz




Description

SQ-DHF(T) pumps are built on the basis of DHF pumps. The main difference between the DHF and the SQ- DHF(T)pump is the variable frequency drive. Enhanced with the SQ-Drive, SQ-DHF(T) pump together with the  appropriate sensor is turned into an intelligent, variable speed pumping system. The SQ-Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow rate.



※ Inlet/Outlet casing material

   - "T" indicates : GCD450

   - Without "T" indicates : Stainless steel



Application

Pressure boosting systems

Domestic water supply systems

Cooling Systems

Air-conditioning systems

Small Industrial water supply systems

Horticultural irrigation system



Features

Each pump are individually controlled by SQ drive.

High reliability (Multi-master control)

Constant discharge pressure

Less wear of the system during operation

Compact assembly and installation

High reliability
