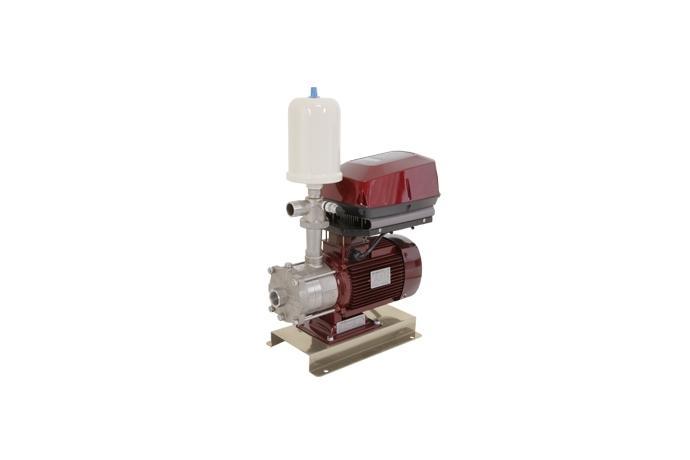

Product Name Individual Inverter Horizontal Pump
Model NSQ-DHF(T) Series
Series Horizontal Pump
Catalog BOOSTER PUMP SYSTEM.pdf
Product Description


· MAX. Flow(Q)   29㎥/h

· MAX. Head(H)   68m

· Motor Power   0.55~5.5kW (0.75~7.5HP)

· Available Power   3PH 380V~440V / 50&60Hz (0.75~7.5HP), 200V~230V




Description

NSQ-DHF(T) pumps are built on the basis of DHF pumps. The main difference between the DHF and the  NSQ-DHF(T) pump is the variable frequency drive. Enhanced with the NSQ-Drive, NSQ-DHF(T) pump  together with the appropriate sensor is turned into an intelligent, variable speed pumping system. The NSQ- Drives adjust the motor speed which in turn provides constant pressure or differential pressure to the flow  rate.



※ Inlet/Outlet casing material

   - "T" indicates : GCD450

   - Without "T" indicates : Stainless steel



Application

Pressure boosting systems

Domestic water supply systems

Cooling Systems

Air-conditioning systems

Small Industrial water supply systems

Horticultural irrigation system



Features

Each pump are individually controlled by NSQ drive.

High reliability (Multi-master control)

Constant discharge pressure

Less wear of the system during operation

Compact assembly and installation

High reliability
