인버터펌프
Model Name
SQ-DHF
Series
Horizontal Pump
Data
BOOSTER PUMP SYSTEM
Manufacturer information
provider logo
DOOCH PUMPBooster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more
Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
60965
Product Name
인버터펌프
Model Name
SQ-DHF
Size
-
Weight
-
Product Details


· 최대유량   13㎥/h

· 최대양정   63m

· 사용압력   최대 10bar

· 펌프동력   0.75~1.5kW (1~2HP)

· 전원사양   단상 220~230V



상세설명

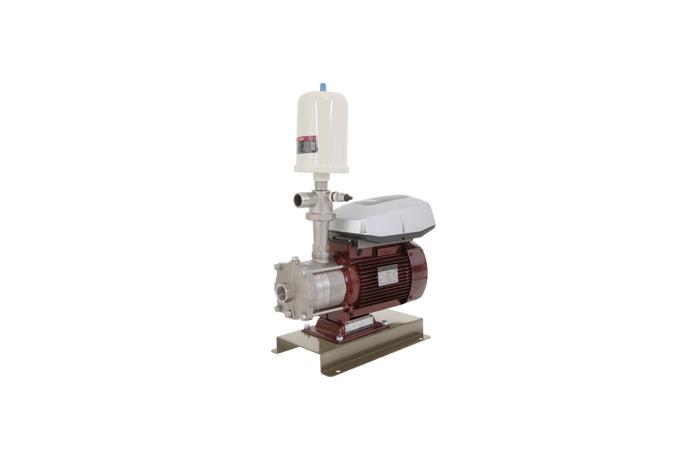

스테인레스 횡형 다단펌프(DHF)에 두크 자체 개발의 단상 펌프전용 인버터(SQ-Drive)를 장착한 전자제어 펌프입니다.

펌프를 인버터 제어함으로 정밀한 급수압력 제어가 가능하며 판넬 및 압력탱크의 크기를 소형화하여 적은 설치 면적으로 공간 활용을 극대화 할 수 있습니다.

사용급수량의 변화에 따라 펌프의 속도를 변화시켜 일정한 압력을 유지하고 소비동력을 크게 절감하는 절전형 전자제어펌프 (E-Pump)이며, 주로 건물의 급수 가압용으로 사용할 수 있습니다.



용도

· 가압용, 급수용(고층 저수압 지역 가압)

· 세척시스템

· 냉각장치

· 공조 시스템

· 스프링클러

· 산업용



주요특징

· 두크 자체 개발의 펌프전용 인버터 SQ-Drive 장착

· 개별 인버터에 의한 정밀한 급수압력제어

· 부하변동에 따른 펌프 성능 최적화로 전력절감

· 소프트 운전으로 저소음 및 수충격 방지

· 컴팩트한 구조로 설치가 쉽고 사용자 조작이 간편함
