DAEYOUNG POWER PUMP

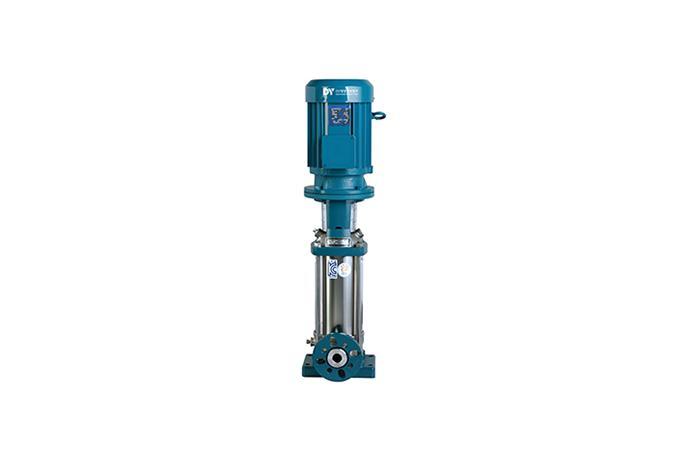

Vertical Multi Stage Pump
Model
Series
Firefighting and Engine Pump
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
-Discharge amount (m3/min)0.02 ~ 3ใฅ/m
-Total pump head (m):10 ~ 250m
-Temperature (โ) :Max. 90โ
-Number of rotations (RPM) :3450rpm (2 Pole)
-Caliber (mm) :25 ~ 100 mm
ย
- The stainless plate impeller and guide vane (diffuser) grafting the latest fluid technology is made in 3D design method that as the high-efficiency pump providing the optimal liquid fluid, it is a pump guaranteeing 10-15% high efficiency compared to previous horizontal multistage pump.ย
- Certified high-efficiency pump = Total 97 items
- Water supply for high-rise apartment, officetel, department store, commercial building, hotel, hospital, golf club, industrial facilities and etc.ย
- Pump which is used for booster pump system
- As vertically installed product, the installation area is minimized to one-fifth compared to horizontal products.ย
- Efficiency is maximized by using 2-pole motor ย
- Low-noise is actualized by utilizing the optimal design ย
- The specification of parts is standardized to enable fast and simple repair ย
- KC Certification product (Usable on pipes)
