Petrochemical Industry Facility

Model

Series

Soot Blower


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

A soot blower is system that effectively removes ashes or other attachments piled on the surface in contact with combustible gas such as boilers, fired heaters and other heat exchange devices.
Use of soot blowing contributes to enhancing heat efficiency and increasing the rate of facility operations. Soot blowers are needed by such facilities as power plant boilers, urban and industrial waste management facilities, fire heaters, denitrification facilities and desulfurization facilities.

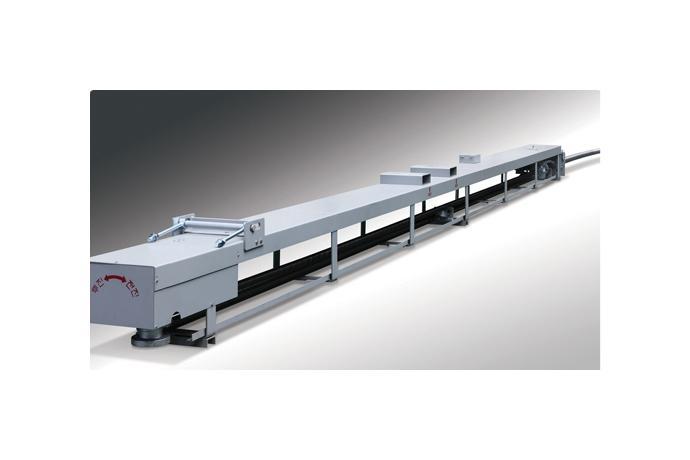

Long Retractable Soot Blower

Designed to operate perfectly under High temperature gas path of boilers and other facilities. It is widely used at boilers and other heat exchangers.

DAEOUNG MACHINERY Petrochemical Industry Facility

DAEOUNG MACHINERY Petrochemical Industry Facility  1

DAEOUNG MACHINERY Petrochemical Industry Facility  2

- Make forward and backward movement of lance tube with 1 motor.

- Maximize blowing efficiency by applying high efficiency ventri nozzles.

- Low noise operation with an enclosed reducer and carriage

- Lance tube selects proper materials for installation and operation conditions.

- Spray pressure control unit in Poppet valve enables to control the nozzle pressure.

- It is convenient for maintenance because each model of poppet valve is in common use.

DAEOUNG MACHINERY Petrochemical Industry Facility  3

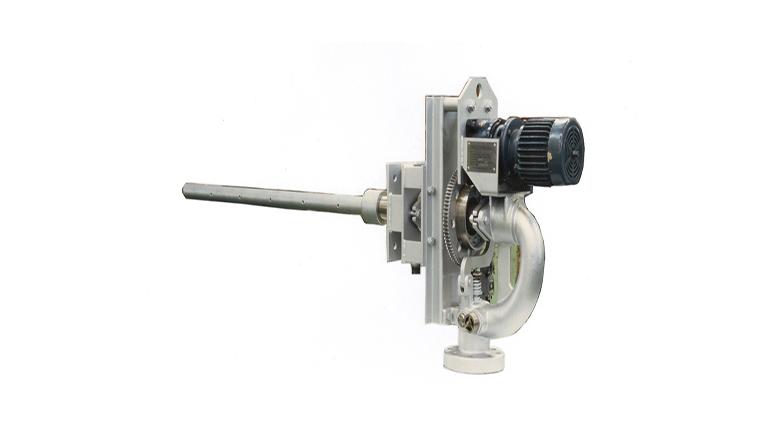

Rotary Soot Blower

Element tube has to be installed in gas path at all times because gas temperatures of boilers and other facilities are low.
(Ex. :Evaporator tube, economizer, tubular air, pre heater, fired heater, etc.)
Element tube is made by proper materials at gas zone temperature and have lots of nozzles clean the whole gas path depending on arrangement of boiler tube.
A single motor enable the element tube to rotate.
It also operates the cam parts and is feasible to open and close of poppet valve.

DAEOUNG MACHINERY Petrochemical Industry Facility  4

- Spray pressure control unit in Poppet valve enables to control the nozzle pressure.

- It is convenient for maintenance because each model of poppet valve is in common.

DAEOUNG MACHINERY Petrochemical Industry Facility  5

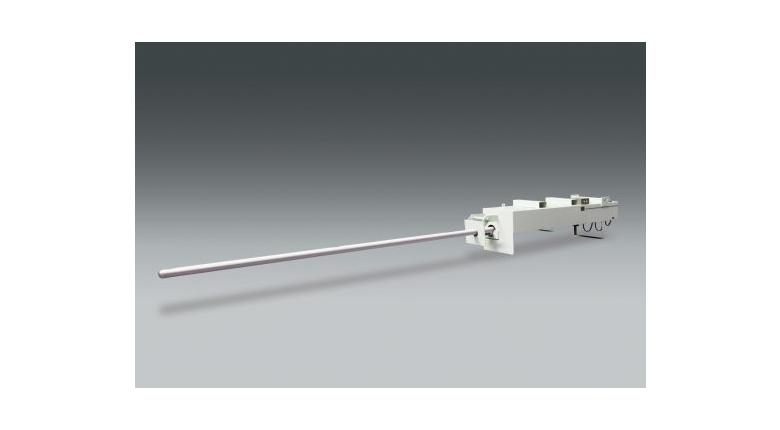

Short Retractable Soot Blower

It is installed at safe section even if some section of lance tube is located in gas path at normal times.
This is because gas temperature of boiler and other facility is low.
It is widely used when they need to more powerful blowing than Rotary type soot blower. (Ex.: Economizer, tubular air, preheater, etc.)
It is basically same structure of LR-2B and nozzle arrayed as equidistant intervals at the plural sections and thus it is able to clean the whole sections of gas path with short transfer distance.
In case that sections are two , it is called half retractable.
Sections will be designed a lot if needed.

DAEOUNG MACHINERY Petrochemical Industry Facility  6

- Make forward and backward movement of lance tube with 1 motor.

- Maximize blowing efficiency by applying high efficiency ventri nozzles.

- Lance tube selects proper materials for installation and operation conditions.

- Low noise operation with an enclosed reducer and carriage

- Spray pressure control unit in Poppet valve enables to control the nozzle pressure.

- It is convenient for maintenance because each model of poppet valve is in common use.

DAEOUNG MACHINERY Petrochemical Industry Facility  7
