DAEHA TECHWIN

DAEHA TECHWIN

Pinch Valve

Model

Series

Blast Parts


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

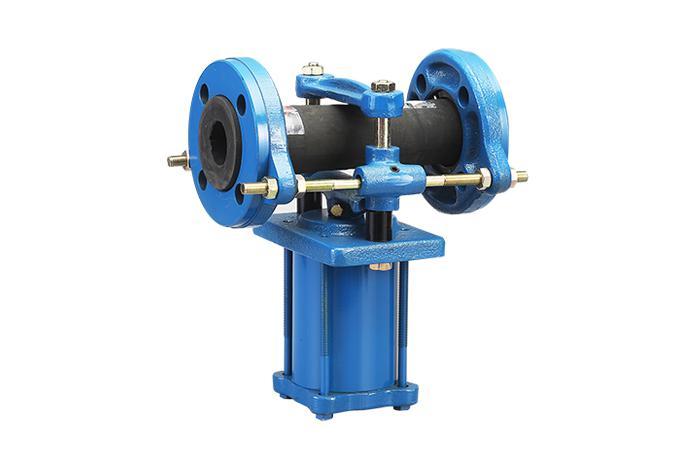

PINCH VALVE

3D SECTION_VIEW







PINCH SLEEVES





Specification

- Model : DPV-40, DPV-25

- Available Size : 1”, 1 ½”

- Flange : JIS(KS) 10K, ANSI 150LB\

- Pilot Port : PT ¼”

- Working Pressure : 5~9 ㎏/㎠

- Weight : 10㎏(DPV-25), 12㎏(DPV-40)





Features

- Single acting pneumatic actuator operation

- Compact design(Body+Actuator+Sleeve)

- Wide application for pneumatic conveyer lines(mainly blast machine)

- Sleeve is the product of YOKOHAMA RUBBER which has the best durability and long life.

- They are available in pinch sleeves(rubber) and pinch valve sets or separately.



PINCH VALVE

Pressure is applied to the cylinder by the sol device in a pop-up manner using pneumatic

It is mounted on the blast tank exhaust or the lower piping system to control the pressure in the blast tank or the shot ball and air pipeline.

If pressure is applied to the cylinder, block the rubber piping mounted on the valve.
