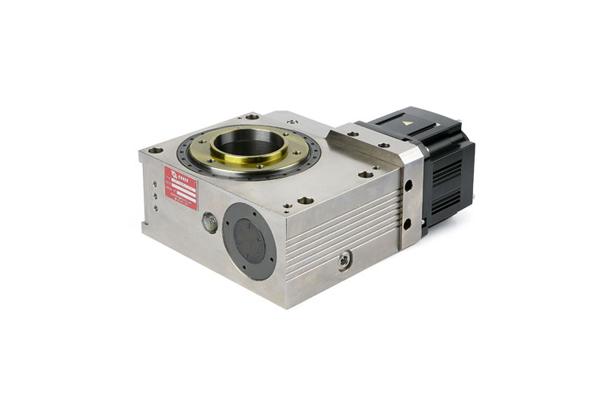

product Image
CF2 RSD (Roller Servo Drive)
Model Name
-
Series
RSD (Roller Servo Drive)
View All
Data
-
Manufacturer information
provider logo
CODEX

Index drive manufacturer, Shaft, Flange, Table type

Problem with product info?
Update request
Manufacturer
CODEX
Product Type
Machine
Brand
-
SKU
126923
Product Name
CF2 RSD (Roller Servo Drive)
Model Name
-
Size
-
Weight
-
Product Details

Overview & Features


항목오일 윤활 타입구리스 윤활 타입단위
감속비(Gear ratio)20302030
시동&정시시 최대 Limit Torque70.9631.4557.6325.54kgf/m
허용 입력 속도(Max)30002000rpm
허용 평균 입력 회전900900arc.sec 이하
arc.sec Max
위치 결정 정도4040arc.sec 이하
arc.sec Max
반복 정도±5±5arc.sec 이하
표면 정도1010㎛이하
허용 Axial 하중380380kgf
허용 Radial 하중317.24317.24kgf
허용 Moment 하중28.9828.98kgf.m
제품 중량21.521.5kg
