SPECIFICATIONS

TYPE

HOLE TYPE

SLOT TYPE

INLET
PRESSURE
(MIN)
kg/㎠

PRESSURE
DROP
kg/㎠

POWER
KW

HOLE
DIA
mm

CONSIS
TENCY
%

FLOW
㎥/mm

POWER
KW

SLOT
SIZE
mm

CONSIS
TENCY
%

FLOW
㎥/min

CA B-600

11

1.6

0~0.8

5.3

15

0.35

0~0.8

3.1

0.5

0~0.3

2.2

0~1.2

8.7

0.5

0~1.2

4.0

CA B-800

19

1.6

0~0.8

10.5

30

0.35

0~0.8

6.5

0.5

0~0.3

2.2

0~1.2

16.7

0.5

0~1.2

8.4

CA B-1000

30

1.6

0~0.8

15.3

37

0.35

0~0.8

9.0

0.5

0~0.3

2.2

0~1.2

24.2

0.5

0~1.2

11.7

TYPE

CA B-600

CA B-800

CA B-1000

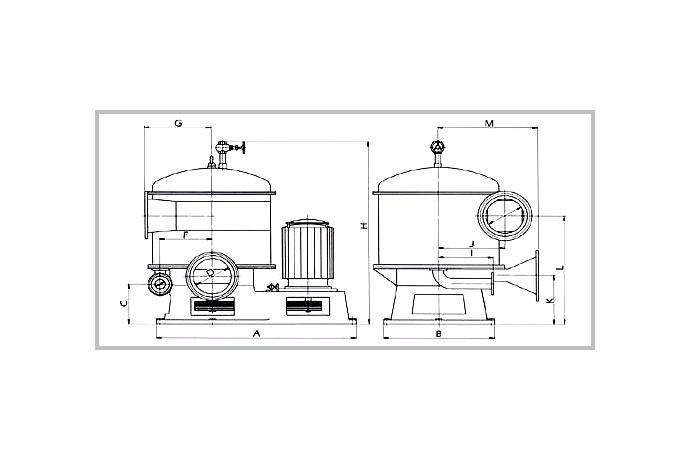

DIMENSION

FC

SUS

FC

SUS

FC

SUS

A

1490

1770

1880

1880

2251

2251

B

860

770

1040

1040

1210

1210

C

535

510

665

655

590

540

D

7B

7B

14B

14B

16B

16B

E

2½B

2½B

4B

4B

5B

5B

F

340

363

493

488

536

517

G

500

500

643

642

703

680

H

1560

1405

1810

2100

2350

2350

I

430

420

555

555

600

650

J

390

400

585

585

660

660

K

400

345

480

475

608

606

L

1027

821

1100

1091

1432

1429

M

500

720

923

910

1103

1020
