THT MEDOR : Odor Measurement (THT) (Odor and Odorants)
Model Name
M31022
Series
Auto GC866 Analyzers
View All
Data
Catalog-Chromatotec-THT MEDOR : Odor Measurement (THT) (Odor and Odorants)
Manufacturer information
provider logo
CHROMATOTEC

Manufacturer of Auto GC866 Analyzers, Mass Spectrometers, Peripherals and more

Problem with product info?
Update request
Manufacturer
CHROMATOTEC
Product Type
Machine
Brand
-
SKU
138577
Product Name
THT MEDOR : Odor Measurement (THT) (Odor and Odorants)
Model Name
M31022, M31022-ATEX-Z1
Size
-
Weight
-
Product Details

Online analysis & control of gas odorisation

Description :

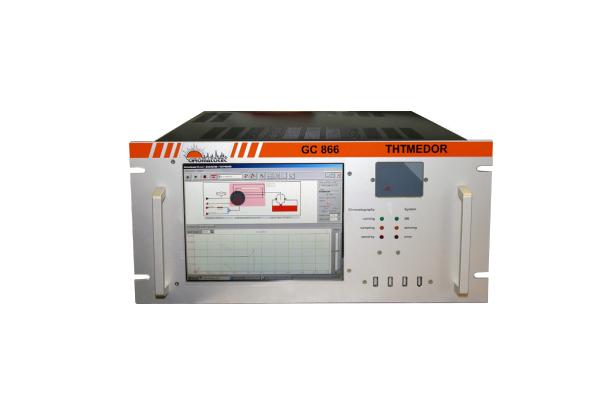

THT Medor is an online Gas Chromatograph dedicated to the analysis of THT present in different gases.
Two versions of the instrument exist :

  • THT Medor ppm (measuring at ppm levels)
  • THT Medor ppb (measuring at ppb levels)

Principle :

  • Internal pressure & temperature monitoring
  • Sample loop injection is made by automatic valve
  • THT Medor uses a sulphur specific electrochemical cell for the detection of THT

Features :

  • Online, continuous sampling
  • No interference from other compounds
  • Low maintenance instrument – detector life may be up to 10 years
  • Automatic Validation of results by Internal Permeation Tube
  • Modifiable threshold alarms – High / Low alarm for odorising processes

VISTACHROM ® software :
Chromatotec developed software system enables :

  • Remote monitoring injection control
  • Full traceability with on board archiving of results
  • QC Set up and control of threshold alarms
  • Export of data MODBUS / MGS1 / 4-20mA / 0-10V
