Changshin Machinery MFG

Vertical Type

Model

Series

Cycloid Reducer

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)

Description

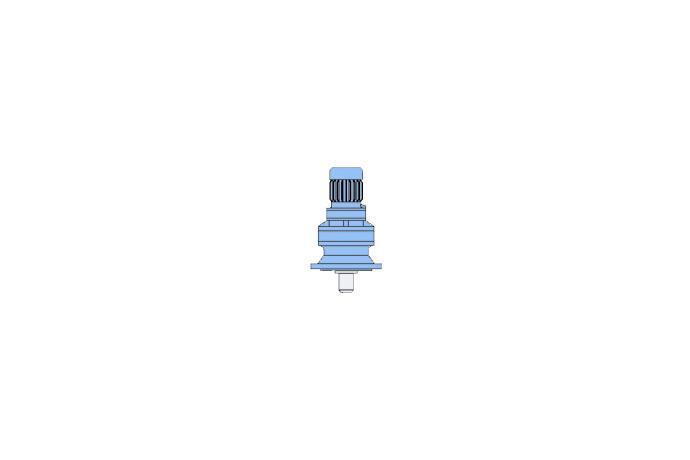

Changshin Machinery MFG Vertical Type MV Series

MODEL No.	DIMENSIONS[mm]												KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	M	d	t	u	KEY	WEIGHT [kg]
MFV1-830	220	190	166	45	55	161	3	14	12	30	8	33	8x7	25
MFV1-835	220	190	166	50	60	161	3	14	12	35	10	38	10x8	26
MFV1-838	250	220	200	55	65	179	3	14	12	38	10	41	10x8	37
MFV1-845	270	236	210	65	75	196	3	18	12	45	14	48.5	14x9	50
MFV1-850	300	264	230	75	85	196	3	18	15	50	14	53.5	14x9	51
MFV1-855	340	304	274	80	91	209	4	20	15	55	16	59	16x10	66
MFV1-860	360	324	294	90	101	231	4	22	17	60	18	64	18x11	90
MFV1-865	380	342	310	95	106	262	4	24	17	65	18	69	18x11	135
MFV1-870	380	342	310	100	111	262	4	24	17	70	20	74.5	20x12	136
MFV1-880	460	414	370	120	131	299	4	26	19	80	22	85	22x14	215
MFV1-885	460	414	370	125	136	299	4	26	19	85	22	90	22x14	216
MFV1-895	550	500	450	145	156	342	4	30	24	95	25	100	25x14	299
MFV1-8100	550	500	450	150	161	342	4	30	24	100	28	106	28x16	300
MFV1-8110	580	530	480	160	171	376	4	32	24	110	28	116	28x16	375
MFV1-8120	636	578	510	180	191	406	4	36	26	120	32	127	32x18	415
MFV1-8130	690	632	570	195	207	420	5	38	26	130	32	137	32x18	456
MFV1-8140	810	752	680	200	212	446	5	42	26	140	36	148	36x20	655
MFV1-8150	900	842	770	220	232	513	5	50	26	150	36	158	36x20	930
MFV1-8170	990	932	860	260	272	570	5	55	26	170	40	179	40x22	1435

1. Please refer the motor size table below for the motor length "I".
2. The weight in the above table is the reducer weight that excludes its motor weight.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 1

HP	ΦD	Round		Flange		AC"B" Brake		MFS Type
HP	ΦD	I	kg	I	kg	I	kg	I	kg
0.5	180	227	15	259	30	331	35	320	41
1	180	227	15	259	30	331	35	320	41
2	199	273	21	315	32	377	38	378	47
3	222	285	30	346	48	389	59	420	65
5	244	313	39	330	52	438	61	402	71
7.5	284	358	56	379	80	483	92	471	99
10	284	398	70	417	87	523	99	509	108
15	337	503	109	474	138	648	155	598	163
20	337	540	136	518	146	685	163	642	173
25	374	560	166	537	161	725	187	661	195
30	374	600	166	537	161	765	187	661	195
40	374	600	282	596	182	765	203	728	211
50	414	640	282	651	282	805	287	783	320
60	414	700	282	651	305	896	312	814	358
75	444	700	420	672	405	896	470	835	467
100	507	720	575	838	490	916	637	1005	542

V.S Motor
HP	KW	I'	kg
0.5	0.4	453	40
1	0.75	544	66
2	1.5	575	90
3	2.2	603	128
5	3.7	661	133
7.5	5.5	716	167
10	7.5	784	213
15	11	919	309
20	15	1005	397
25	18.5	1175	465
30	22	1213	480
40	30
50	37
60	45
75	55
100	75

Changshin Machinery MFG Vertical Type MV Series 2

MODEL No.	DIMENSIONS[mm]												KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	M	d	t	u	KEY	WEIGHT [kg]
MV2-845	270	236	210	65	75	298	3	18	12	45	14	48.5	14x9	62
MV2-850	300	264	230	75	85	298	3	18	15	50	14	53.5	14x9	63
MV2-855	340	304	274	80	91	313	4	20	15	55	16	59	16x10	83
MV2-860	360	324	294	90	101	336	4	22	17	60	18	64	18x11	110
MV2-865	380	342	310	95	106	366	4	24	17	65	18	69	18x11	155
MV2-870	380	342	310	100	111	366	4	24	17	70	20	74.5	20x12	156
MV2-880	460	414	370	120	131	414	4	26	19	80	22	85	22x14	250
MV2-885	460	414	370	125	136	414	4	26	19	85	22	90	22x14	251
MV2-895	550	500	450	145	156	457	4	30	24	95	25	100	25x14	336
MV2-8100	550	500	450	150	161	457	4	30	24	100	28	106	28x16	337
MV2-8110	580	530	480	160	171	496	4	32	24	110	28	116	28x16	415
MV2-8120	636	578	510	180	191	525	4	36	26	120	32	127	32x18	475
MV2-8130	690	632	570	195	207	549	5	38	26	130	32	137	32x18	515
MV2-8140	810	752	680	200	212	583	5	42	26	140	36	148	36x20	735
MV2-8150	900	842	770	220	232	633	5	50	26	150	36	158	36x20	1018
MV2-8170	990	932	860	260	272	718	5	55	26	170	40	179	40x22	1548

1. Please refer the motor size table below for the motor length "I".
2. The weight in the above table is the reducer weight that excludes its motor weight.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 3

HP	ΦD	Round		Flange		AC"B" Brake		MFS Type
HP	ΦD	I	kg	I	kg	I	kg	I	kg
0.5	180	227	15	259	30	331	35	320	41
1	180	227	15	259	30	331	35	320	41
2	199	273	21	315	32	377	38	378	47
3	222	285	30	346	48	389	59	420	65
5	244	313	39	330	52	438	61	402	71
7.5	284	358	56	379	80	483	92	471	99
10	284	398	70	417	87	523	99	509	108
15	337	503	109	474	138	648	155	598	163
20	337	540	136	518	146	685	163	642	173
25	374	560	166	537	161	725	187	661	195
30	374	600	166	537	161	765	187	661	195
40	374	600	282	596	182	765	203	728	211
50	414	640	282	651	282	805	287	783	320
60	414	700	282	651	305	896	312	814	358
75	444	700	420	672	405	896	470	835	467
100	507	720	575	838	490	916	637	1005	542

V.S Motor
HP	KW	I'	kg
0.5	0.4	453	40
1	0.75	544	66
2	1.5	575	90
3	2.2	603	128
5	3.7	661	133
7.5	5.5	716	167
10	7.5	784	213
15	11	919	309
20	15	1005	397
25	18.5	1175	465
30	22	1213	480
40	30
50	37
60	45
75	55
100	75

Changshin Machinery MFG Vertical Type MV Series 4

MODEL No.	DIMENSIONS[mm]												KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	M	d	t	u	KEY	WEIGHT [kg]
MV3-845	270	236	210	65	75	404	3	18	12	45	14	48.5	14x9	94
MV3-850	300	264	230	75	85	404	3	18	15	50	14	53.5	14x9	95
MV3-855	340	304	274	80	91	418	4	20	15	55	16	59	16x10	130
MV3-860	360	324	294	90	101	450	4	22	17	60	18	64	18x11	154
MV3-865	380	342	310	95	106	479	4	24	17	65	18	69	18x11	200
MV3-870	380	342	310	100	111	479	4	24	17	70	20	74.5	20x12	201
MV3-880	460	414	370	120	131	516	4	26	19	80	22	85	22x14	291
MV3-885	460	414	370	125	136	516	4	26	19	85	22	90	22x14	292
MV3-895	550	500	450	145	156	559	4	30	24	95	25	100	25x14	380
MV3-8100	550	500	450	150	161	559	4	30	24	100	28	106	28x16	381
MV3-8110	580	530	480	160	171	600	4	32	24	110	28	116	28x16	481
MV3-8120	636	578	510	180	191	629	4	36	26	120	32	127	32x18	540
MV3-8130	690	632	570	195	207	654	5	38	26	130	32	137	32x18	567
MV3-8140	810	752	680	200	212	688	5	42	26	140	36	148	36x20	819
MV3-8150	900	842	770	220	232	738	5	50	26	150	36	158	36x20	1131
MV3-8170	990	932	860	260	272	822	5	55	26	170	40	179	40x22	1792

1. Please refer the motor size table below for the motor length "I".
2. The weight in the above table is the reducer weight that excludes its motor weight.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 5

HP	ΦD	Round		Flange		AC"B" Brake		MFS Type
HP	ΦD	I	kg	I	kg	I	kg	I	kg
0.5	180	227	15	259	30	331	35	320	41
1	180	227	15	259	30	331	35	320	41
2	199	273	21	315	32	377	38	378	47
3	222	285	30	346	48	389	59	420	65
5	244	313	39	330	52	438	61	402	71
7.5	284	358	56	379	80	483	92	471	99
10	284	398	70	417	87	523	99	509	108
15	337	503	109	474	138	648	155	598	163
20	337	540	136	518	146	685	163	642	173
25	374	560	166	537	161	725	187	661	195
30	374	600	166	537	161	765	187	661	195
40	374	600	282	596	182	765	203	728	211
50	414	640	282	651	282	805	287	783	320
60	414	700	282	651	305	896	312	814	358
75	444	700	420	672	405	896	470	835	467
100	507	720	575	838	490	916	637	1005	542

V.S Motor
HP	KW	I'	kg
0.5	0.4	453	40
1	0.75	544	66
2	1.5	575	90
3	2.2	603	128
5	3.7	661	133
7.5	5.5	716	167
10	7.5	784	213
15	11	919	309
20	15	1005	397
25	18.5	1175	465
30	22	1213	480
40	30
50	37
60	45
75	55
100	75

Changshin Machinery MFG Vertical Type MV Series 6

MODEL No.	DIMENSIONS[mm]												KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	M	d	t	u	KEY	WEIGHT [kg]
MV2-845	270	236	210	65	75	298	3	18	12	45	14	48.5	14x9	64
MV2-850	300	264	230	75	85	298	3	18	15	50	14	53.5	14x9	65
MV2-855	340	304	274	80	91	313	4	20	15	55	16	59	16x10	86
MV2-860	360	324	294	90	101	336	4	22	17	60	18	64	18x11	114
MV2-865	380	342	310	95	106	366	4	24	17	65	18	69	18x11	160
MV2-870	380	342	310	100	111	366	4	24	17	70	20	74.5	20x12	161
MV2-880	460	414	370	120	131	414	4	26	19	80	22	85	22x14	256
MV2-885	460	414	370	125	136	414	4	26	19	85	22	90	22x14	257
MV2-895	550	500	450	145	156	457	4	30	24	95	25	100	25x14	343
MV2-8100	550	500	450	150	161	457	4	30	24	100	28	106	28x16	344
MV2-8110	580	530	480	160	171	496	4	32	24	110	28	116	28x16	423
MV2-8120	636	578	510	180	191	525	4	36	26	120	32	127	32x18	484
MV2-8130	690	632	570	195	207	549	5	38	26	130	32	137	32x18	525
MV2-8140	810	752	680	200	212	583	5	42	26	140	36	148	36x20	746
MV2-8150	900	842	770	220	232	633	5	50	26	150	36	158	36x20	1030
MV2-8170	990	932	860	260	272	718	5	55	26	170	40	179	40x22	1561

1. Please refer the motor size table below for the motor length "I".
2. The weight in the above table is the reducer weight that excludes its motor weight.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 7

HP	ΦD	Round		Flange		AC"B" Brake		MFS Type
HP	ΦD	I	kg	I	kg	I	kg	I	kg
0.5	180	227	15	259	30	331	35	320	41
1	180	227	15	259	30	331	35	320	41
2	199	273	21	315	32	377	38	378	47
3	222	285	30	346	48	389	59	420	65
5	244	313	39	330	52	438	61	402	71
7.5	284	358	56	379	80	483	92	471	99
10	284	398	70	417	87	523	99	509	108
15	337	503	109	474	138	648	155	598	163
20	337	540	136	518	146	685	163	642	173
25	374	560	166	537	161	725	187	661	195
30	374	600	166	537	161	765	187	661	195
40	374	600	282	596	182	765	203	728	211
50	414	640	282	651	282	805	287	783	320
60	414	700	282	651	305	896	312	814	358
75	444	700	420	672	405	896	470	835	467
100	507	720	575	838	490	916	637	1005	542

V.S Motor
HP	KW	I'	kg
0.5	0.4	453	40
1	0.75	544	66
2	1.5	575	90
3	2.2	603	128
5	3.7	661	133
7.5	5.5	716	167
10	7.5	784	213
15	11	919	309
20	15	1005	397
25	18.5	1175	465
30	22	1213	480
40	30
50	37
60	45
75	55
100	75

Changshin Machinery MFG Vertical Type MV Series 8

MODEL No.	DIMENSIONS[mm]												KEY	WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	M	d	t	u	KEY	WEIGHT [kg]
MV3-845	270	236	210	65	75	404	3	18	12	45	14	48.5	14x9	96
MV3-850	300	264	230	75	85	404	3	18	15	50	14	53.5	14x9	97
MV3-855	340	304	274	80	91	418	4	20	15	55	16	59	16x10	133
MV3-860	360	324	294	90	101	450	4	22	17	60	18	64	18x11	158
MV3-865	380	342	310	95	106	479	4	24	17	65	18	69	18x11	205
MV3-870	380	342	310	100	111	479	4	24	17	70	20	74.5	20x12	206
MV3-880	460	414	370	120	131	516	4	26	19	80	22	85	22x14	297
MV3-885	460	414	370	125	136	516	4	26	19	85	22	90	22x14	298
MV3-895	550	500	450	145	156	559	4	30	24	95	25	100	25x14	387
MV3-8100	550	500	450	150	161	559	4	30	24	100	28	106	28x16	388
MV3-8110	580	530	480	160	171	600	4	32	24	110	28	116	28x16	489
MV3-8120	636	578	510	180	191	629	4	36	26	120	32	127	32x18	549
MV3-8130	690	632	570	195	207	654	5	38	26	130	32	137	32x18	577
MV3-8140	810	752	680	200	212	688	5	42	26	140	36	148	36x20	830
MV3-8150	900	842	770	220	232	738	5	50	26	150	36	158	36x20	1143
MV3-8170	990	932	860	260	272	822	5	55	26	170	40	179	40x22	1805

1. Please refer the motor size table below for the motor length "I".
2. The weight in the above table is the reducer weight that excludes its motor weight.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 9

HP	ΦD	Round		Flange		AC"B" Brake		MFS Type
HP	ΦD	I	kg	I	kg	I	kg	I	kg
0.5	180	227	15	259	30	331	35	320	41
1	180	227	15	259	30	331	35	320	41
2	199	273	21	315	32	377	38	378	47
3	222	285	30	346	48	389	59	420	65
5	244	313	39	330	52	438	61	402	71
7.5	284	358	56	379	80	483	92	471	99
10	284	398	70	417	87	523	99	509	108
15	337	503	109	474	138	648	155	598	163
20	337	540	136	518	146	685	163	642	173
25	374	560	166	537	161	725	187	661	195
30	374	600	166	537	161	765	187	661	195
40	374	600	282	596	182	765	203	728	211
50	414	640	282	651	282	805	287	783	320
60	414	700	282	651	305	896	312	814	358
75	444	700	420	672	405	896	470	835	467
100	507	720	575	838	490	916	637	1005	542

V.S Motor
HP	KW	I'	kg
0.5	0.4	453	40
1	0.75	544	66
2	1.5	575	90
3	2.2	603	128
5	3.7	661	133
7.5	5.5	716	167
10	7.5	784	213
15	11	919	309
20	15	1005	397
25	18.5	1175	465
30	22	1213	480
40	30
50	37
60	45
75	55
100	75

Changshin Machinery MFG Vertical Type MV Series 10

MODEL No.	DIMENSIONS[mm]														WEIGHT [kg]
MODEL No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	WEIGHT [kg]
CYD-845	200	210	14	77	110	135	6	13	8	14	178	274	320	65A #20	44
CYD-850	230	215	16	90	132	165	6	13	8	14	208	314	360	80A #20	64
CYD-855	260	220	16	102	140	180	6	13	10	14	224	338	400	90A #40	70
CYD-860	280	230	16	115	160	200	6	16	10	14	234	356	420	100A #40	87
CYD-870	280	235	16	115	160	200	6	16	12	17	254	376	440	100A #40	110
CYD-880	350	295	20	140	190	250	6	17	14	20	316	468	540	125A #40	198
CYD-8100	427	395	30	166	240	320	8	22	16	24	398	568	650	150A #40	247
CYD-8110	450	425	30	217	270	340	8	24	18	24	420	600	680	200A #40	280
CYD-8120	507	435	32	268	330	400	8	24	18	24	446	636	730	250A #40	320
CYD-8130	553	442	32	268	330	400	8	26	20	26	490	688	780	250A #60	361
CYD-8140	564	468	32	319	380	450	8	26	20	26	576	808	900	300A #40	454
CYD-8150	595	502	32	319	380	450	8	26	22	26	660	940	1020	300A #60	480
CYD-8170	675	545	32	319	380	450	8	26	27	26	740	1020	1100	300A #60	748

1. The Drive Unit is used in the center drive type sedimentation.
2. The Shear-Pin is a device that protects the reducer by automatically cutting power in case of excessive power in the passive area.
3. The company also produces the metal box for fixing lower part of the scrapper.

Motor Dimension

Changshin Machinery MFG Vertical Type MV Series 11

MODEL No.	DIMENSIONS[mm]									PIPE SIZE
MODEL No.	A	B	C	D	E	F	G	H	J	PIPE SIZE
CYMB-845	160	126	67	77	50	178	12	13	45	65A-#20
CYMB-850	160	126	80	89	50	185	16	13	50	80A-#20
CYMB-855	180	134	90	100	50	178	16	17	55	90A-#40
CYMB-860	260	200	102	114	60	208	16	17	65	100A-#40
CYMB-870	260	200	102	114	60	208	16	17	65	100A-#40
CYMB-880	300	226	126	138	80	259	19	21	85	125A-#40
CYMB-885	300	226	126	138	80	259	19	21	85	125A-#40
CYMB-895	340	254	150	160	80	297	22	27	100	150A-#40
CYMB-8100	340	254	150	160	80	297	22	27	100	150A-#40
CYMB-8110	340	254	199	209	80	300	25	27	110	200A-#40
CYMB-8120	380	300	248	259	120	370	30	32	120	250A-#40
CYMB-8130	400	320	241	259	120	375	35	32	130	250A-#60
CYMB-8140	400	320	297	299	120	375	35	35	140	300A-#40
CYMB-8150	450	350	289	298	120	395	35	35	150	300A-#60
CYMB-8170	500	400	289	298	120	395	35	35	170	300A-#60

Inquiry

KOMACHINE CO., LTD.

CEO Charlie ParkCorporate # 553-86-00664

(Post 17015) 1101ho ,16-4, Dongbaekjungang-ro 16beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea
