product Image

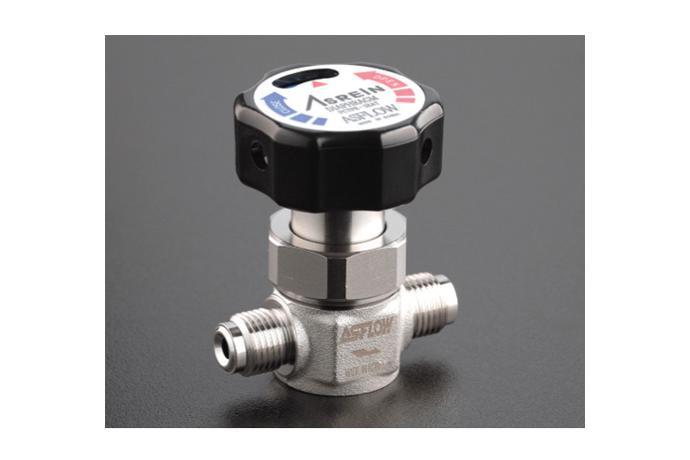

Forged Type Manual Diaphragm Valve
Model Name
-
Data
-
Manufacturer information
provider logo
ASFLOW

Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more

Problem with product info?
Update request
Manufacturer
ASFLOW
Brand
-
SKU
53503
Product Name
Forged Type Manual Diaphragm Valve
Model Name
-
Size
-
Weight
-
Product Details

ASFLOW Forged Type Manual Diaphragm Valve

PRODUCT SIZE CONNECTION GRADE MATERIAL
FDV Manual Diaphragm Valve (Forged Body) 04 1/4″ MV Male B BA 316LS SUS316L Single melt
06 3/8″ FV Female E EP 316LD SUS316L Double melt
08 1/2″ LOK Lok     304 SUS304
12 3/4″ BW Butt Weld
Product Dimension (mm)
Model Connection Size A B C D E F G H
ASFLOW Forged Type Manual Diaphragm Valve  1 Male 1/4″ 57 28 65 11 45 17
3/8″ 77 38 79 16 45 28
1/2″ 77 38 79 16 45 28
3/4″ 122 38 85 22 45 28
ASFLOW Forged Type Manual Diaphragm Valve  2 Female 1/4″ 78 28 65 11 45 17
3/8″ 104.6 38 79 16 45 28
1/2″ 104.6 38 79 16 45 28
3/4″ 122 38 85 22 45 28
ASFLOW Forged Type Manual Diaphragm Valve  3 Lok 1/4″ 55 28 65 11 45 17
3/8″ 70 38 79 16 45 28
1/2″ 70 38 79 16 45 28
3/4″ 84 38 85 22 45 28
ASFLOW Forged Type Manual Diaphragm Valve  4 Butt Weld 1/4″ 54 28 65 11 45 17
3/8″ 69 38 79 16 45 28
1/2″ 69 38 79 16 45 28
3/4″ 150 38 85 22 45 28
ASFLOW
Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more
ASFLOW Co., Ltd is a company specialized in the production of semiconductor equipments and high purity valves used for high purity gas lines. We are the leading material & components group in Korea which contributes to the industry. ASFLOW, first founded in May, 2000 has succeeded in the domestic production of high purity valves that were once available only through importation. With the provision of valves our company will expand not only in the domestic market, but also to China, Japan and Europe to affirm our brand image and further develop as the world leading company. Beginning with registering our tube, fitting valves with Samsung Electronics and Skhynics in 2005, we have expanded our lineup by adding valves and regulators and have produced new products such as filter and diffusers for a unique portfolio. ASFLOW will constantly develop by expanding internally through innovation and become a bigger business.
