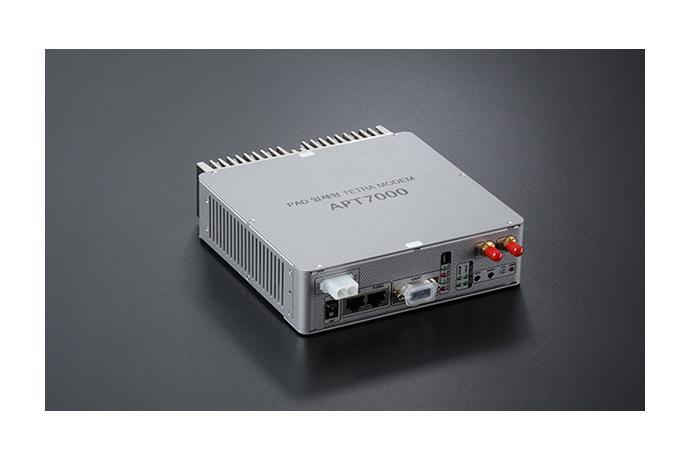

APT7000 Modem
Model Name
-
Series
Satellite Communication Sector
Data
-
Manufacturer information
provider logo
AP SATELLITESatellite & Satellite Communication Device Manufacturer, Satellite Smartphone, Satellite Bus System Design and more
Problem with product info?
Update request
Manufacturer
AP SATELLITE
Brand
-
SKU
53710
Product Name
APT7000 Modem
Model Name
-
Size
-
Weight
-
Product Details

Next generation Tetra technology

APT7000 is the world-first TEDS modem that was optimized to SCADA applications and achieved Tetra Interoperability Certificate from TCCA.
APT7000 utilizes the next generation Tetra modems on the existing 25kHZ narrow bandwidth. APT7000 comes in two versions supporting 380MHz and 410MHz, respectively.



FunctionData/Messaging ServicesShort Data Service(SDS)
Circuit Switched Data
Multi-slot Packet Data
Peripheral Equipment Interface (PEI)
Status messaging
Security ServicesAuthentication
Air Interface Encryption : TEA1 & TEA3
Security Class(Class 1, Class 2, Class 3)
GPS ServicesAutonomous GPS support
Position Information Sending
RF SpecificationAir Interface SpecETSI TS 300 392-2 v3.4.0
Bands380 ~ 400MHz
Bandwidth25KHz
Data Rates115.2 Kbps(when 64QAM mode)
RF Power1W(Hardware 3W Ready)
Receiver sensitivity(static)-112dBm(PM), -114/-107/-102dBm(4/16/64QAM)
Receiver Sensitivity(dynamic)-103dBm(PM), -109/-104/-100dBm(4/16/64QAM)
GPSMode of Operation : Autonomous or assisted(A-GPS)
Sensitivity : -152dBm
StandardDimensions H x W x D(mm)160 x 115 x 56(with heat-sink)
Weight(g)650
Input powerDC 12V
AntennaRoad type(Size TDB)
Service EnvironmentInterface2 UART ports
Antenna connector(SMA type) : TETRA & GPS
DC Input
Operating Temperature ℃-20 to +55
Storage Temperature ℃-30 to +75
HumidityETS 300 019-1-7 class 7.3E
